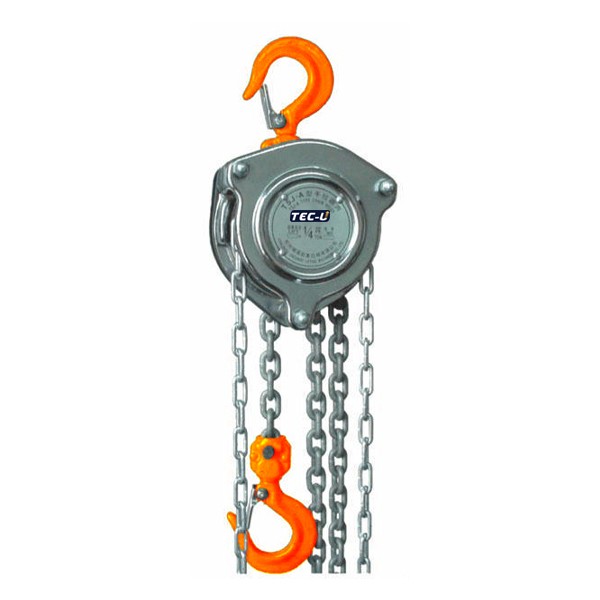

Chain Hoist HSZ-M2
-
HSZ-M2 type 0.25 ton Chain Hoist is a kind of efficient and versatile lifting tool,which is capable of being widely applied in factory， power plants,laboratory，transport and house for installing machines，repairing lifting goods and dragging and securing loads etc. It is particularly used in the narrow places, overhead working and in the open air，stretching in the various angle with unique superior advantages.
-
HSZ-M2 type 0.25 ton Chain Hoist is a kind of efficient and versatile lifting tool,which is capable of being widely applied in factory， power plants,laboratory，transport and house for installing machines，repairing lifting goods and dragging and securing loads etc. It is particularly used in the narrow places, overhead working and in the open air，stretching in the various angle with unique superior advantages.
You May Also Like
You May Also Like
Product Parameter
Capacity
T
0.25
Lift
M
2
Test Load
KN
3.06
Headroom(hook to hook)Hmin
MM
230
Pulling force to lift full load
N
114
No.of load chain fall lines
1
Load chain (dia.* pitch)
MM
Φ4×12
Dimensions
(MM)
A
100
B
110
C
48.5
D
109
E
18
E1
15.5
Φ
25
Net weight
KG
3.5
Extra weight per meter of extra lift
KG
0.54
Product Parameter
| Capacity | T | 0.25 |
| Lift | M | 2 |
| Test Load | KN | 3.06 |
| Headroom(hook to hook)Hmin | MM | 230 |
| Pulling force to lift full load | N | 114 |
| No.of load chain fall lines | 1 | |
| Load chain (dia.* pitch) | MM | Φ4×12 |
| Dimensions (MM) |
A | 100 |
| B | 110 | |
| C | 48.5 | |
| D | 109 | |
| E | 18 | |
| E1 | 15.5 | |
| Φ | 25 | |
| Net weight | KG | 3.5 |
| Extra weight per meter of extra lift | KG | 0.54 |
