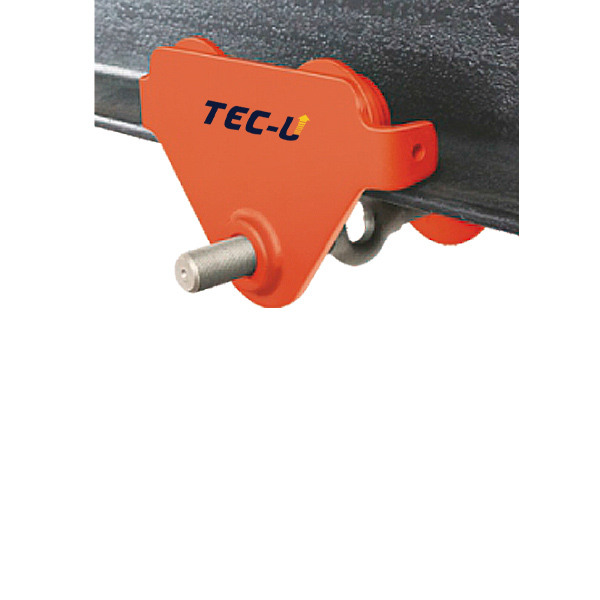

Plain Trolley GCT-D
- The plain trolley have 5 specifications from 1/2t to 5t.
- The plain trolley is hand operated by pulling the hand chain, running on the bottom flange of monorail. With the screw hanger to adjust the width of l-beam.
- They are widely used in factories, mines, wharves, docks, warehouses and engine rooms for installation of equipment and conveyance of goods.
- They are especially suitable for maintenance and repairing of equipment in places where no power supply is available.
Product parameter
Model | GCT-0.5D | GCT-1D | GCT-2D | GCT-3D | GCT-5D | GCL-0.5D | GCL-1D | GCL-2D | GCL-3D | GCL-5D | ||
Capacity | kg | 500 | 1000 | 2000 | 3000 | 5000 | 500 | 1000 | 2000 | 3000 | 5000 | |
Test load | kn | 7.35 | 14.71 | 29.42 | 44.13 | 61.29 | 7.35 | 14.71 | 29.42 | 44.13 | 61.29 | |
Min. radius of curve | m | 1.1 | 1.1 | 1.3 | 1.5 | 1.8 | 1.1 | 1.1 | 1.3 | 1.5 | 1.8 | |
Dimensions (mm) |
A | 260 | 260 | 310 | 390 | 450 | 260 | 260 | 310 | 390 | 450 | |
B | 185 | 188 | 218 | 273 | 315 | 185 | 188 | 218 | 273 | 315 | ||
C | pylon | 292 | 300 | 310 | 324 | 329 | 292.5 | 302.5 | 319.5 | 354 | 365 | |
lengthen pylon | 377 | 385 | 395 | 409 | 414 | 383 | 393 | 398 | 425.5 | 430.5 | ||
D | 30 | 35 | 47 | 58 | 70 | 30 | 35 | 47 | 58 | 70 | ||
E | 25 | 30 | 40 | 48 | 60 | 25 | 30 | 40 | 48 | 60 | ||
H | 77 | 83 | 98.5 | 114 | 132.5 | 77 | 83 | 98.5 | 114 | 132.5 | ||
F | ≈3 | ≈3 | ||||||||||
Adjustable Beam Width (mm) | M | pylon | 50~220 | 58~220 | 66~220 | 74~220 | 90~220 | 50~220 | 58~220 | 66~220 | 74~220 | 90~220 |
lengthen pylon | 160~305 | 160~305 | 160~305 | 160~305 | 160~305 | 160~305 | 160~305 | 160~305 | 160~305 | 160~305 | ||
Net weight | kg | 8.3 | 10.9 | 18.2 | 31.4 | 42.6 | 13.3 | 15.9 | 23.2 | 37.7 | 48.9 | |
8.7 | 11.4 | 19 | 32.5 | 44 | 13.7 | 16.4 | 24 | 38.8 | 50.3 |
