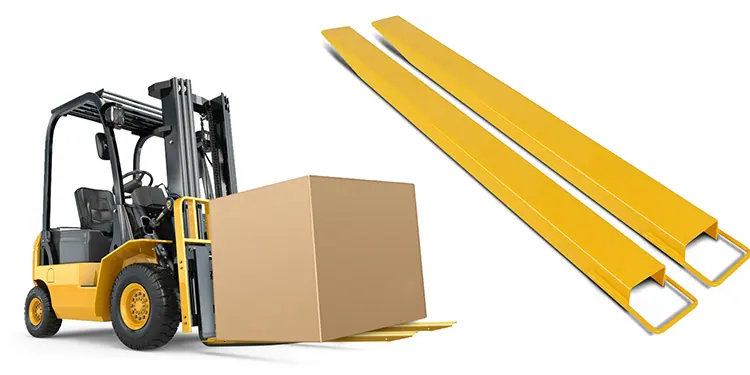

Fork extensions are removable sleeves fitted over a forklift's existing fork arms to provide temporary support beneath a load that is longer than the parent forks. They increase usable fork length; they do not increase the truck's capacity. Because the load may sit farther forward, the extension-and-truck combination can reduce available capacity and change stability.
Choose extensions only after confirming the load, the parent forks, and the approved truck configuration. Record the load mass, dimensions and centre of gravity; the truck model and capacity plate; the fork blade length, width and thickness; the required supporting length; the extension rating and retention method; and the route. The Liftool forklift-accessories category shows the relevant product family, but the truck manufacturer or authorised supplier and the instructions for the exact extension must determine compatibility.
Decide whether extensions are the right solution
Fork extensions can suit occasional handling of a long, stable load when the parent forks do not provide enough support and an approved extension pair can be matched to the truck. They are not a remedy for insufficient truck capacity, an unknown load centre, a weak pallet or load base, poor visibility, or a route that cannot accommodate the longer load.
The current ISO 13284:2026 scope and introduction describe fork-arm extensions as a temporary way to extend effective blade length and state that longer forks should be used whenever possible. The standard covers technical characteristics and strength requirements for extensions designed for specified industrial-truck fork arms; it is not evidence that any extension fits any fork or market.
Use longer forks, telescopic forks, a different attachment, or a different truck when the task is frequent, the required load position cannot remain within the approved capacity, the load cannot be adequately supported, or the extension instructions do not permit the application. Double-deep racking and one-side trailer handling are not automatic extension applications: reach, withdrawal, visibility, rack clearance, floor condition and truck capacity all require a task-specific assessment.
Specify the complete truck, fork and load combination
| Information to confirm | Why it matters |
|---|---|
| Truck make, model, mast, maximum lift height and capacity plate | Capacity can change with attachment, height and load centre |
| Parent-fork blade length, width, thickness and rated capacity | The extension must be designed for the exact supporting fork section and length |
| Load mass, length, width, base construction and centre of gravity | These determine support, load position, visibility and stability |
| Required extension length and usable support beneath the load | Excess length can move the load centre forward and invite tip loading |
| Extension construction, pair rating and retaining system | Open and closed designs can have different support rules; the exact instructions control |
| Route, aisle and doorway clearances, surface, gradients and traffic | A longer load changes turning space, visibility and pedestrian exposure |
| Destination market and required documents | Approval, marking, inspection and capacity-plate duties differ by jurisdiction |
Do not select from extension length alone. Confirm that the pair is rated for the intended load and that the load will be supported in the way permitted by that design. Do not combine unmatched extensions, modify the sleeves, add improvised stops, or use homemade channel sections as substitutes for a documented product.
Recalculate capacity and update operating information
An extension does not preserve the forklift's original capacity merely because the load mass is below the number on the existing plate. Moving the load's centre of gravity forward increases the overturning moment. The extension weight, load centre, lift height, mast and load distribution can all affect the approved capacity.
In the United States, OSHA 29 CFR 1910.178 requires prior written manufacturer approval for modifications or additions that affect capacity or safe operation, with capacity and operating plates changed accordingly. It also requires attachment-related training, stable loads, loads within rated capacity and the load-engaging means placed under the load as far as possible. These are US requirements; determine which provisions apply to the actual truck, extension and workplace.
For Great Britain, HSE L117 specifically states that attachments, including fork extensions, affect stability and should not be used before advice is obtained from the supplier or manufacturer. It says necessary derating should be completed by a person with appropriate knowledge and experience and that a capacity plate for the attachment should be applied before use. Other markets require their own regulatory and standards review.
If the approved combined capacity or required plate is unavailable, do not guess from a moment calculation or a generic online chart. Hold the job until the truck manufacturer, authorised supplier or other party allowed by the applicable rules confirms the configuration.
Inspect, fit and secure the extensions
Use a matched pair with legible identification and the specified heel restraint, pin, loop or locking device. Before fitting, inspect the parent forks and extensions for deformation, cracks, damaged welds, excessive wear, corrosion, damaged tips, missing retainers and other conditions identified in the manuals. Remove damaged or uncertain equipment from service.
Follow the installation procedure for the exact design. With the truck secured in the prescribed condition and the forks unloaded, place each extension fully over its parent fork, seat it in the intended position and engage the retaining system behind the heel or at the specified locking point. Confirm that both extensions are aligned, cannot slide off accidentally and do not interfere with the carriage, mast, load backrest or floor.
Do not assume that a sleeve which physically slides over a fork is compatible. Excess clearance, insufficient parent-fork support, the wrong section, missing retention or an unverified rating are stop conditions.
Handle the load without tip loading
Only a trained and authorised operator who understands the changed capacity, dimensions and visibility should use the truck. Before entering the load, spread the forks as widely as the load and pallet permit, align both extensions, and check that the load is stable and the underside can accept the planned contact.
Place the extensions beneath the load as far as the approved configuration permits. Keep the load centred laterally where possible and as close to the fork heels and mast as the load and instructions allow. Do not pick up or carry a load only on the extension tips, use the extensions to pry or push, drag a load sideways, or allow a concentrated contact point that the extension design does not permit.
Travel with the load at the height and mast position specified by the truck and extension instructions. Use controlled acceleration, braking and turns; allow for the longer swept path; and keep pedestrians clear. If the load obstructs forward view, use the travel method, assistance and route controls required by the workplace plan and applicable rules rather than looking around an unstable or elevated load.
Stop if an extension shifts, a retainer loosens, a fork or sleeve bends, the load settles unevenly, the truck feels unstable, visibility or clearance becomes inadequate, or the route differs from the plan. Lower and secure the load before anyone approaches to correct the arrangement.
What to send with a fork-extension enquiry
Provide the truck make and model, mast and lift height, current capacity-plate information, parent-fork dimensions and markings, load mass and centre of gravity, load and pallet dimensions, required support length, frequency of use, route and clearance details, operating environment, destination market and documentation requirements. Photos of the forks, plate, load underside and route help identify missing information.
Review the documented Fork Extensions FE format, then send the full application data to Liftool. The enquiry should be treated as a compatibility and capacity review, not as approval to use a selected length on an unverified truck.
