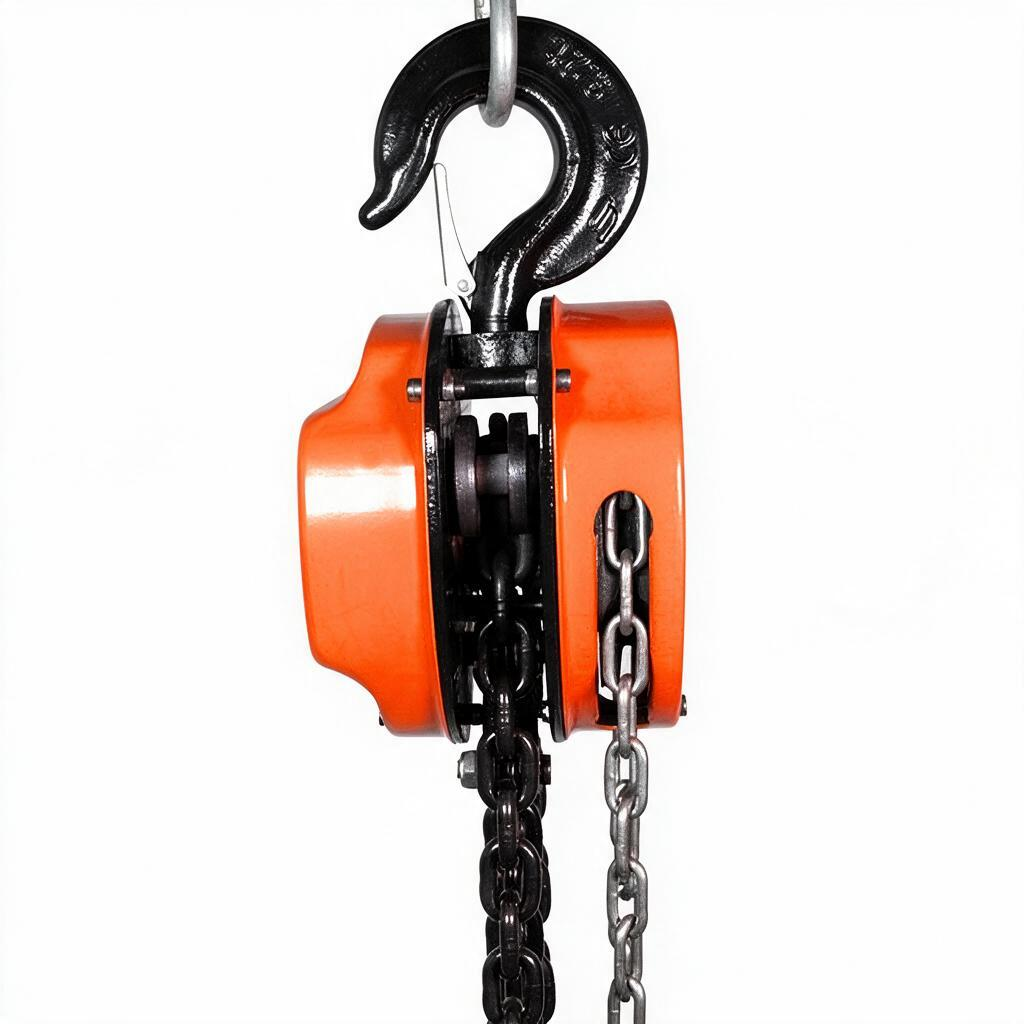

Chain Hoist HSZ
- Small size,light weight,easy to carry.
- The adoption of low-alloy structural steel plates,more safety and long service life.
- Grade 80 high strength load chain, High safe factor,Long service life.
- Steady rotation,high efficiency,light hand pulling force.
- Double pawls,double load chain guide wheel ensure the safe working.
- Overload protecting optional.
- Small size,light weight,easy to carry.
- The adoption of low-alloy structural steel plates,more safety and long service life.
- Grade 80 high strength load chain, High safe factor,Long service life.
- Steady rotation,high efficiency,light hand pulling force.
- Double pawls,double load chain guide wheel ensure the safe working.
- Overload protecting optional.
Product Feature



Product Parameter

Model
Capacity
(t)
StandardLift
(M)
Running testload
(t)
Effort required
tolift max load
(N)
No.of falls
of load chain
load chain
diameter (mm)
Dimension(mm)
Net weight
(kg)
Packing(LW*H)(cm)
A
B
H
D
HSZ-0.5
0.5
2.5
0.75
200
1
6
113
125
255
28
9
22*15*14
HSZ-1
1
2.5
1.5
304
1
6
126
147
306
32
11.5
25*19*15
HSZ-1.5
1.5
2.5
2.25
343
1
6
141
183
368
36
15
25*19*15
HSZ-2
2
3
3
304
2
6
141
183
368
36
16
31*21*17
HSZ-3
3
3
4.5
343
2
8
141
183
486
46
25
34.5*24*16
HSZ-5
5
3
7.5
414
2
10
163
215
616
46
39
40*30*17
HSZ-10
10
3
15
423
4
10
163
404
750
57
75
48*42*18.5
HSZ-20
20
3
30
435*2
8
10
191
595
1000
81
185
78*68*20
Product Feature



Product Parameter

Model | Capacity (t) |
StandardLift (M) |
Running testload (t) |
Effort required tolift max load (N) |
No.of falls of load chain |
load chain diameter (mm) |
Dimension(mm) | Net weight (kg) |
Packing(LW*H)(cm) | |||
A | B | H | D | |||||||||
HSZ-0.5 | 0.5 | 2.5 | 0.75 | 200 | 1 | 6 | 113 | 125 | 255 | 28 | 9 | 22*15*14 |
HSZ-1 | 1 | 2.5 | 1.5 | 304 | 1 | 6 | 126 | 147 | 306 | 32 | 11.5 | 25*19*15 |
HSZ-1.5 | 1.5 | 2.5 | 2.25 | 343 | 1 | 6 | 141 | 183 | 368 | 36 | 15 | 25*19*15 |
HSZ-2 | 2 | 3 | 3 | 304 | 2 | 6 | 141 | 183 | 368 | 36 | 16 | 31*21*17 |
HSZ-3 | 3 | 3 | 4.5 | 343 | 2 | 8 | 141 | 183 | 486 | 46 | 25 | 34.5*24*16 |
HSZ-5 | 5 | 3 | 7.5 | 414 | 2 | 10 | 163 | 215 | 616 | 46 | 39 | 40*30*17 |
HSZ-10 | 10 | 3 | 15 | 423 | 4 | 10 | 163 | 404 | 750 | 57 | 75 | 48*42*18.5 |
HSZ-20 | 20 | 3 | 30 | 435*2 | 8 | 10 | 191 | 595 | 1000 | 81 | 185 | 78*68*20 |
