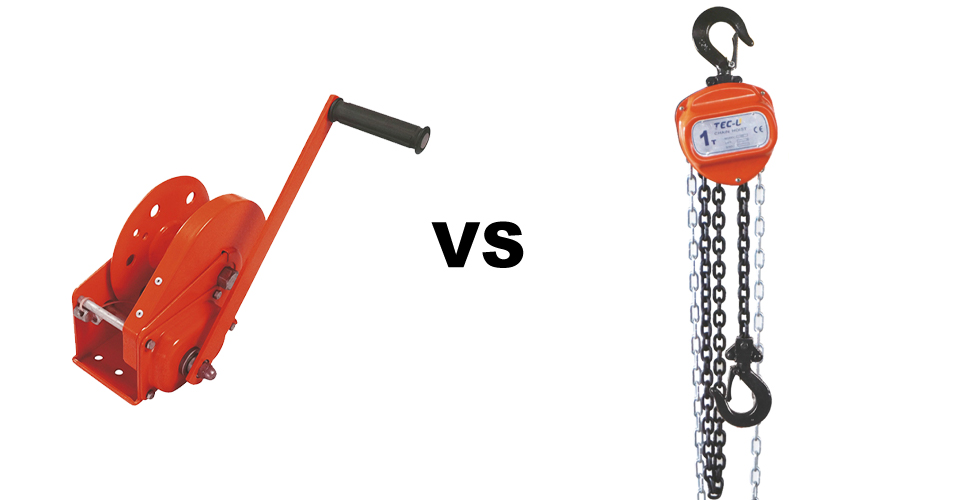

A hand winch and a hand chain hoist both use manual effort and mechanical advantage, but they are not interchangeable by default. Many hand winches pull through rope on a drum. A hand chain hoist hangs above a load and raises or lowers it with load chain. Exceptions require manufacturer approval.
Relevant Liftool categories: hand winches and manual chain hoists.
Quick Answer
Choose by the movement and equipment rating, not capacity alone. For a horizontal or angled pull with a fixed mounting point and long rope travel, a suitably rated hand winch is usually the better fit. For controlled vertical lifting from an approved overhead suspension point, a hand chain hoist is usually the clearer choice. Never use a pulling-only winch to suspend a load, and never side-pull with a chain hoist unless its instructions allow it.
Hand Winch vs Chain Hoist at a Glance
| Selection factor | Hand winch | Hand chain hoist |
|---|---|---|
| Typical primary task | Pulling, positioning, or tensioning | Raising and lowering a suspended load |
| Load medium | Wire rope, cable, or approved synthetic rope wound on a drum | Calibrated load chain passing over a load wheel |
| Installation | Bolted or otherwise secured to a structure, trailer, machine, or winch stand | Suspended from a rated beam clamp, trolley, anchor, or other approved support |
| Travel | Can provide long rope reach, subject to drum capacity and required wraps | Limited by the specified lift and available headroom |
| Load control | Depends on the model's brake, gearing, drum, rope anchorage, and mounting | Typically uses a load brake and geared chain mechanism |
| Main selection question | Is this exact model rated for the pull or lift direction and installation? | Is the hoist, support, rigging, and lift path rated for the suspended load? |
This functional distinction is a useful starting point, but it does not replace the marked rating and instructions for a specific product.
When a Hand Winch Is the Better Fit
A hand winch is often practical when a load must be drawn along a surface, moved onto a trailer, positioned through a long rope path, or tensioned from a fixed point. Actual force at the load depends on friction, slope, reeving, rope direction, and the amount of rope on the drum.
Do not convert a rated pull directly into an assumed lifting capacity. Confirm:
- whether the model is marked for pulling, lifting, or both;
- the rated load for the actual operating direction;
- mounting-hole pattern, foundation strength, and allowable fleet angle;
- rope type, diameter, construction, attachment method, and drum capacity;
- minimum rope wraps required on the drum;
- brake type and whether it is designed to hold the intended load; and
- environmental limits such as corrosion or outdoor exposure.
Some hand winches are specifically designed and rated for vertical lifting as well as horizontal pulling. Treat this as a model-specific capability: verify the nameplate and operating instructions rather than assuming it from the product type. Liftool's range also contains different rated pulls, gear ratios, rope arrangements, and brake designs.
When a Hand Chain Hoist Is the Better Fit
A hand chain hoist is usually suited to intermittent vertical lifting where an approved overhead support is available. Pulling the hand chain drives the geared load wheel and moves the hook block; the load brake controls lifting and lowering within the rated use.
Before choosing a chain hoist, confirm:
- rated capacity and required lift;
- available headroom and approach distance;
- the rating and geometry of the suspension point;
- hook, latch, load chain, brake, and chain-container requirements;
- whether a trolley is needed for horizontal travel;
- operating environment and duty expectations; and
- site inspection and documentation requirements.
Some purpose-designed hand chain hoists may permit pulling or positioning from an angle. Treat this as a model-specific capability and do not assume it applies to another hoist without confirmation in that model's instructions.
Five Questions to Ask Before Buying
- Is the load being pulled or suspended? A suspended load creates different failure consequences.
- What does the nameplate permit? Match rated load, direction, lift or travel, rope or chain, and operating position to the job.
- Where will the equipment react the load? A winch needs a suitable mounting structure; a hoist needs a rated suspension point.
- How will the load be controlled through the full path? Check obstructions, side loading, rope spooling, chain alignment, hook position, and the exclusion area.
- What records and service support are required? Confirm instructions, inspection criteria, spare parts, and applicable site rules.
Common Selection Mistakes
- Buying by maximum capacity while ignoring load direction and support geometry.
- Using a pulling-only trailer winch for overhead lifting because it has a brake.
- Side-pulling a conventional chain hoist and allowing the load chain or hooks to bear against an edge.
- Treating rope breaking strength as the winch's allowable working load.
- Using an unverified beam, bracket, vehicle point, or improvised anchor.
- Allowing people beneath a suspended load.
For a practical pulling setup review, see How to Use a Hand Winch Safely.
Inspection and Operating Boundary
Inspect before use according to the instructions. For a winch, check the mounting, drum, rope anchorage, gearing, brake, handle, and rope path. For a chain hoist, check the support, hooks, latches, load chain, hand chain, housing, brake response, and smooth operation.
Keep clear of the load path and line of pull. Do not exceed the marked rating, shock load the equipment, extend the handle, modify a brake, or use damaged rope, chain, hooks, or mounting hardware. If the rating, intended direction, or support arrangement is uncertain, stop and obtain the manufacturer's or a qualified person's confirmation before use.
FAQ
Can a hand winch lift vertically?
Only if the specific winch is designed, marked, and installed for lifting. A rated pulling capacity or a self-locking-looking mechanism does not by itself approve overhead or suspended-load use.
Can a chain hoist pull horizontally?
Some models permit pulling or positioning at an angle, but many conventional hoists are intended for an in-line lift. Follow the exact model instructions and avoid side loading unless the manufacturer approves the arrangement.
Which is easier to move between job sites?
The equipment weight is only part of the answer. A chain hoist may be compact but still needs a rated overhead support. A hand winch may be light but needs a secure mounting arrangement and compatible rope. Compare the complete setup.
What information should I send with an inquiry?
Provide the load weight and shape, movement direction, pulling distance or lift height, mounting or suspension details, operating environment, expected frequency, preferred rope or chain arrangement, destination, and any required certification or documentation.
