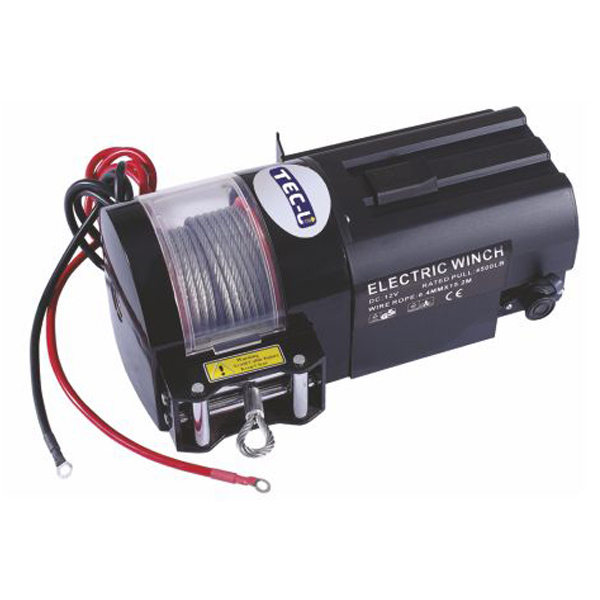

Utility Winch PU
- Electric winch is widely used for pulling stuck vehicles and other heavy items.
- 12V DC powered for convenient use without extension cords or small gas engines.
- Permanent magnet DC motor or wound motor with the feature of high torque and speed.
- Specially designed planetary gearing for heavy duty and solenoid control box supplied.
- Electric winch is widely used for pulling stuck vehicles and other heavy items.
- 12V DC powered for convenient use without extension cords or small gas engines.
- Permanent magnet DC motor or wound motor with the feature of high torque and speed.
- Specially designed planetary gearing for heavy duty and solenoid control box supplied.
Product parameter
Model
Rated single line pull
(LBS)
Motor
(kw)
Gear reduction ratio
Cable
(Dia.×L)
Overall Dimensions
(mm)
N.W/G.W
(kg)
Packing Size
(cm)
packing qty
PU4000
4000
1.2kw/12V; 1.1kw/24V
159:1
6.3mm×15.2m
378×183×152
18/19
44.5×30×22.5
1PC/CTN
PU4500
4500
1.2kw/12V; 1.1kw/24V
159:1
6.3mm×15.2m
383×183×152
18/19
44.5×30×22.5
1PC/CTN
Product parameter
Model | Rated single line pull (LBS) |
Motor (kw) |
Gear reduction ratio | Cable (Dia.×L) |
Overall Dimensions (mm) |
N.W/G.W (kg) |
Packing Size (cm) |
packing qty |
PU4000 | 4000 | 1.2kw/12V; 1.1kw/24V | 159:1 | 6.3mm×15.2m | 378×183×152 | 18/19 | 44.5×30×22.5 | 1PC/CTN |
PU4500 | 4500 | 1.2kw/12V; 1.1kw/24V | 159:1 | 6.3mm×15.2m | 383×183×152 | 18/19 | 44.5×30×22.5 | 1PC/CTN |
