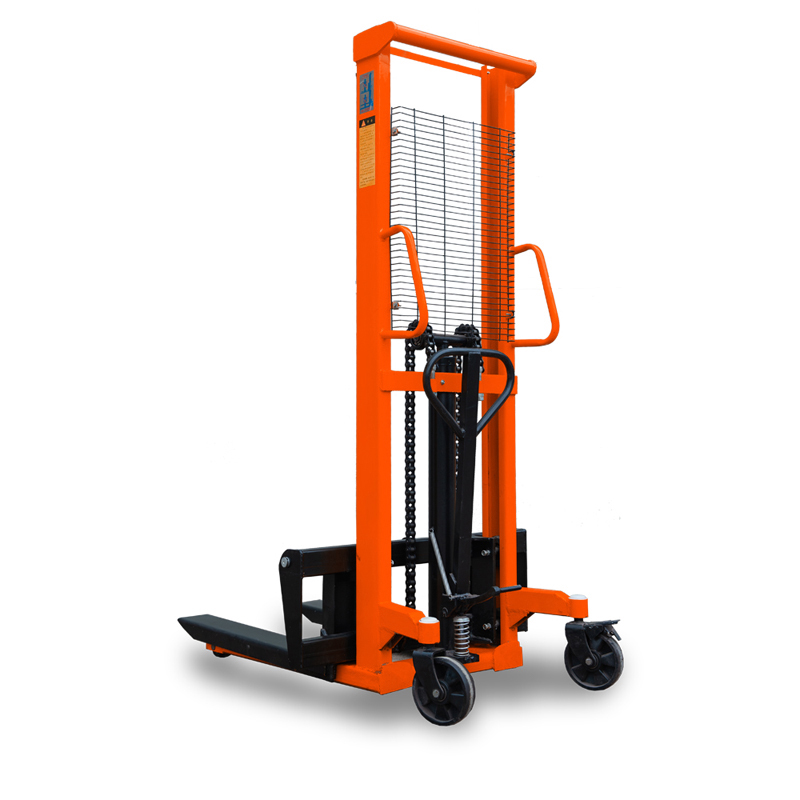

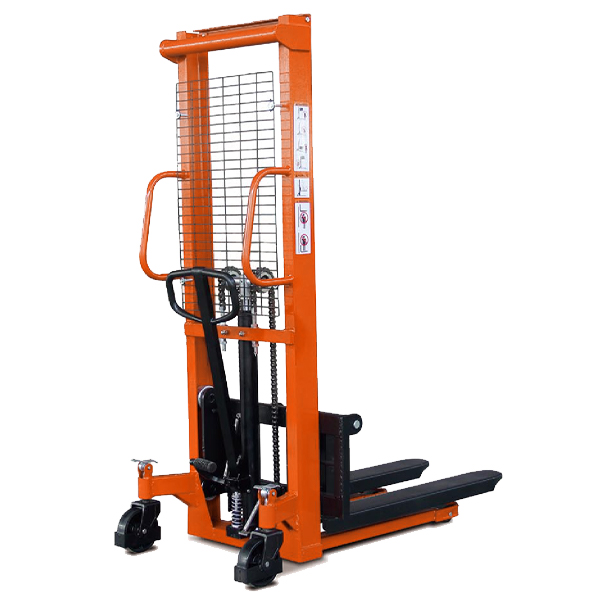

Hand Stacker SYG-I
- The mast frame is made of high quality steel, good rigidity;
- high strength, can be used for a long time;
- Manual pedal can replace the operation of the lifting function,not easy to fatigue, improve work efficiency;
- Mast frame and the fork of the goods provide various styles, suitable for various venues and the use of the pallet.
- The mast frame is made of high quality steel, good rigidity;
- high strength, can be used for a long time;
- Manual pedal can replace the operation of the lifting function,not easy to fatigue, improve work efficiency;
- Mast frame and the fork of the goods provide various styles, suitable for various venues and the use of the pallet.
Product parameter
Model
SYG-Ⅰ 0516
SYG-Ⅰ 1016
SYG-Ⅰ 1516
SYG-Ⅰ 2016
Capacity
Q(Kg)
500
1000
1500
2000
Load center
C(mm)
400
400
400
400
Type of lifting
Manual/Foot
Manual/Foot
Manual/Foot
Manual/Foot
Operating type
Walkie
Walkie
Walkie
Walkie
Material
Nylon
Nylon
Nylon
Nylon
Quantity of Steering/Bearing Wheel
2/2
2/2
2/2
2/2
Wheel base
mm
1140
1140
1140
1140
Bearing wheel size
mm
Φ75×42
Φ80×60
Φ80×60
Φ80×60
Steering wheel size
mm
Φ180×50
Φ180×50
Φ180×50
Φ180×50
Min.fork height
H1(mm)
90
90
90
90
Max.fork height
H2(mm)
1600
1600
1600
1600
Fork outside width
mm
220-720
200-940
200-940
240-940
Fork inside width
mm
20-520
0-740
0-740
0-700
Fork length
L1(mm)
800
900
900
900
Single fork size
e/s(mm)
100/48
100/30
100/30
120/30
Overall length
L(mm)
1284
1375
1430
1430
Overall width
E(mm)
820
1000
1000
1000
Overall height
H(mm)
1985
1985
2085
2085
Min.ground clearance
mm
30
30
30
30
Min.turning radius
Wa(mm)
1250
1400
1400
1400
Max. pump pressure(laden)
times
≤76
≤76
≤110
≤110
Lowering speed(laden/unladen)
mm/s
Foot control
Foot control
Foot control
Foot control
Net weight
Kg
190
220
250
275
Product parameter
Model | SYG-Ⅰ 0516 | SYG-Ⅰ 1016 | SYG-Ⅰ 1516 | SYG-Ⅰ 2016 | |
Capacity | Q(Kg) | 500 | 1000 | 1500 | 2000 |
Load center | C(mm) | 400 | 400 | 400 | 400 |
Type of lifting | Manual/Foot | Manual/Foot | Manual/Foot | Manual/Foot | |
Operating type | Walkie | Walkie | Walkie | Walkie | |
Material | Nylon | Nylon | Nylon | Nylon | |
Quantity of Steering/Bearing Wheel | 2/2 | 2/2 | 2/2 | 2/2 | |
Wheel base | mm | 1140 | 1140 | 1140 | 1140 |
Bearing wheel size | mm | Φ75×42 | Φ80×60 | Φ80×60 | Φ80×60 |
Steering wheel size | mm | Φ180×50 | Φ180×50 | Φ180×50 | Φ180×50 |
Min.fork height | H1(mm) | 90 | 90 | 90 | 90 |
Max.fork height | H2(mm) | 1600 | 1600 | 1600 | 1600 |
Fork outside width | mm | 220-720 | 200-940 | 200-940 | 240-940 |
Fork inside width | mm | 20-520 | 0-740 | 0-740 | 0-700 |
Fork length | L1(mm) | 800 | 900 | 900 | 900 |
Single fork size | e/s(mm) | 100/48 | 100/30 | 100/30 | 120/30 |
Overall length | L(mm) | 1284 | 1375 | 1430 | 1430 |
Overall width | E(mm) | 820 | 1000 | 1000 | 1000 |
Overall height | H(mm) | 1985 | 1985 | 2085 | 2085 |
Min.ground clearance | mm | 30 | 30 | 30 | 30 |
Min.turning radius | Wa(mm) | 1250 | 1400 | 1400 | 1400 |
Max. pump pressure(laden) | times | ≤76 | ≤76 | ≤110 | ≤110 |
Lowering speed(laden/unladen) | mm/s | Foot control | Foot control | Foot control | Foot control |
Net weight | Kg | 190 | 220 | 250 | 275 |
