| Model | Capacity (T) | Stroke (mm) | Max Working Distance (mm) | packing size(mm) | N.W. (kg) | G.W.(kg) | QTY/20GP (pcs) |
| TL0600-12 | 12 | 150 | 750 | 1350x240x160 | 52 | 54 | 520 |
| TL0600-20 | 20 | 160 | 1080 | 1#1600x260x150 2#170x180x250 |
75 | 78 | 220 |
| Model | Rated output (kg/cm2) | Oil capacity (cc) | Size (mm) | Weight (kg) |
| CP-700-2 | 700 | 2100 | 710x185x190 | 13 |
| CP-700 | 700 | 900 | 680x185x185 | 12 |
| CP-180 | 700 | 350 | 420x260x260 | 5 |
| CP-390 | 700 | 400 | 420x260x260 | 5.4 |
| Model | Working pressure (Mpa) | Power (KW) | Flow rate (L/min) | Oil capacity (L) | Size (cm) | Weight (kg) | Control | |
| Low pressure stage | High pressure stage | |||||||
| ZHH630A | 63 | 0.75 | 5 | 0.7 | 8 | 30x24x38 | 22 | Manual |
| ZHH700A | 70 | 0.75 | 5 | 0.7 | 8 | 30x24x38 | 22 | Manual |
| ZHH700B | 70 | 0.75 | 5 | 0.7 | 8 | 30x24x38 | 22 | Electromagnetic |
| ZHH700B-10BA | 70 | 1.5 | 10 | 1.5 | 20 | 36x30x70 | 45 | Electromagnetic |
| ZHH700B-10BB | 70 | 1.5 | 10 | 1.5 | 40 | 48x36x66 | 47 | Electromagnetic |
| ZHH700B-10BC | 70 | 2.2 | 10 | 2 | 40 | 48x36x70 | 54 | Electromagnetic |
| ZHH700B-10BD | 70 | 3 | 10 | 3 | 40 | 48x36x70 | 56 | Electromagnetic |
| Model | Working pressure (Mpa) | Power (KW) | Flow rate (L/min) | Oil capacity (L) | Size (cm) | Weight (kg) | Control | |
| Low pressure stage | High pressure stage | |||||||
| ZHH700B-II | 70 | 0.75 | 5 | 0.7 | 8 | 30x24x38 | 22 | Electromagnetic |
| ZHH700C-10B-IIA | 70 | 1.5 | 10 | 1.5 | 20 | 36x30x56 | 45 | Electromagnetic |
| ZHH700C-10B-IIB | 70 | 1.5 | 10 | 1.5 | 40 | 48x36x66 | 47 | Electromagnetic |
| ZHH700C-10B-IIC | 70 | 2.2 | 10 | 2 | 40 | 48x36x70 | 54 | Electromagnetic |
| ZHH700C-10B-IID | 70 | 3 | 10 | 3 | 40 | 48x36x70 | 56 | Electromagnetic |
| ZHH700C | 70 | 0.75 | 5 | 0.7 | 8 | 30x24x38 | 22 | Manual |
| ZHH700C-10BA | 70 | 1.5 | 10 | 1.5 | 20 | 36x30x56 | 45 | Manual |
| ZHH700C-10BB | 70 | 1.5 | 10 | 1.5 | 40 | 48x36x66 | 47 | Manual |
| ZHH700C-10BC | 70 | 2.2 | 10 | 2 | 40 | 48x36x70 | 54 | Manual |
| ZHH700C-10BD | 70 | 3 | 10 | 3 | 40 | 48x36x70 | 56 | Manual |
| Model | Rated capacity (t) | Test load (KN) | Rope Dia. (mm) | Weight (kg) | |
| Application | Max | ||||

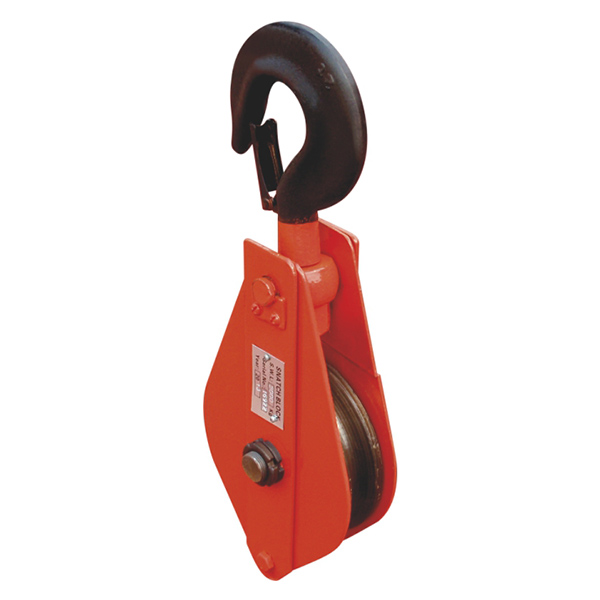

| Single wheel block | |||||
| HQG1-0.5 | 0.5 | 8 | 6.2 | 7.7 | 1.76 |
| HQG1-1 | 1 | 16 | 7.7 | 11 | 3.6 |
| HQG1-2 | 2 | 32 | 11 | 14 | 7.41 |
| HQG1-3.2 | 3.2 | 51.2 | 12.5 | 15.5 | 12.22 |
| HQG1-5 | 5 | 80 | 15.5 | 18.5 | 19.85 |
| HQG1-8 | 8 | 128 | 20 | 23 | 36.4 |
| HQG1-10 | 10 | 160 | 23 | 24.5 | 54.1 |
| HQG1-16 | 16 | 224 | 28 | 31 | 113.5 |
| HQG1-20 | 20 | 280 | 31 | 35 | 162.2 |
| HQG1-32 | 32 | 512 | 35 | 38 | 300 |
| HQL1-0.5 | 0.5 | 8 | 6.2 | 7.7 | 1.53 |
| HQL1-1 | 1 | 16 | 7.7 | 11 | 3.23 |
| HQL1-2 | 2 | 32 | 11 | 14 | 6.8 |
| HQL1-3.2 | 3.2 | 51.2 | 12.5 | 15.5 | 11.48 |
| HQL1-5 | 5 | 80 | 15.5 | 18.5 | 18.88 |
| HQL1-8 | 8 | 128 | 20 | 23 | 34.33 |
| HQL1-10 | 10 | 160 | 23 | 24.5 | 52.04 |
| HQL1-16 | 16 | 224 | 28 | 31 | 107.16 |
| HQL1-20 | 20 | 280 | 31 | 35 | 152.15 |
| Model | Rated capacity (t) | Test load (KN) | Rope Dia. (mm) | Weight (kg) | |
| Application | Max | ||||

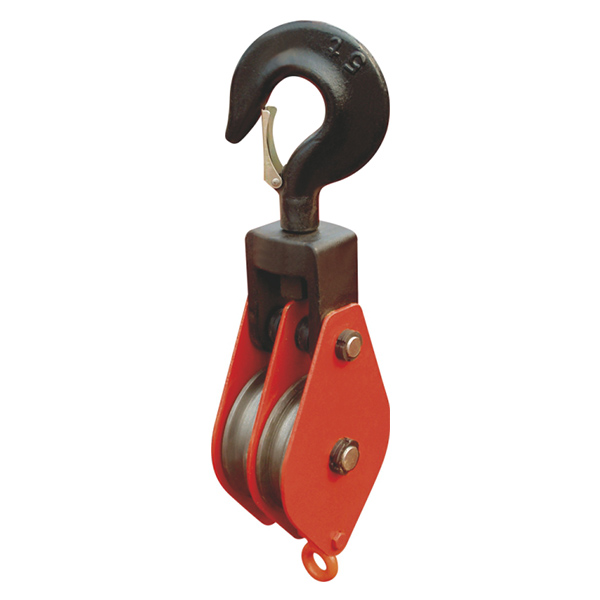

| Double wheel block | |||||
| HQG2-1 | 1 | 16 | 6.2 | 7.7 | 4.83 |
| HQG2-2 | 2 | 32 | 7.7 | 11 | 6.54 |
| HQG2-3.2 | 3.2 | 51.2 | 11 | 14 | 10.67 |
| HQG2-5 | 5 | 80 | 12.5 | 15.5 | 18.81 |
| HQG2-8 | 8 | 128 | 15.5 | 18.5 | 34.43 |
| HQG2-10 | 10 | 160 | 17 | 20 | 78.7 |
| HQG2-16 | 16 | 224 | 23 | 24.5 | 99.79 |
| HQG2-20 | 20 | 280 | 26 | 28 | 138.92 |
| HQG2-32 | 32 | 512 | 35 | 38 | 300 |
| HQD2-1 | 1 | 16 | 6.2 | 7.7 | 3.05 |
| HQD2-2 | 2 | 32 | 7.7 | 11 | 5.96 |
| HQD2-3.2 | 3.2 | 51.2 | 11 | 14 | 10 |
| HQD2-5 | 5 | 80 | 12.5 | 15.5 | 15.9 |
| HQD2-8 | 8 | 128 | 15.5 | 18.5 | 30.1 |
| HQD2-10 | 10 | 160 | 17 | 20 | 41 |
| HQD2-16 | 16 | 224 | 23 | 24.5 | 82.3 |
| HQD2-20 | 20 | 280 | 26 | 28 | 118 |
| HQD2-32 | 32 | 448 | 31 | 35 | 237.5 |
| Model | Rated capacity (t) | Test load (KN) | Rope Dia. (mm) | Weight (kg) | |
| Application | Max | ||||

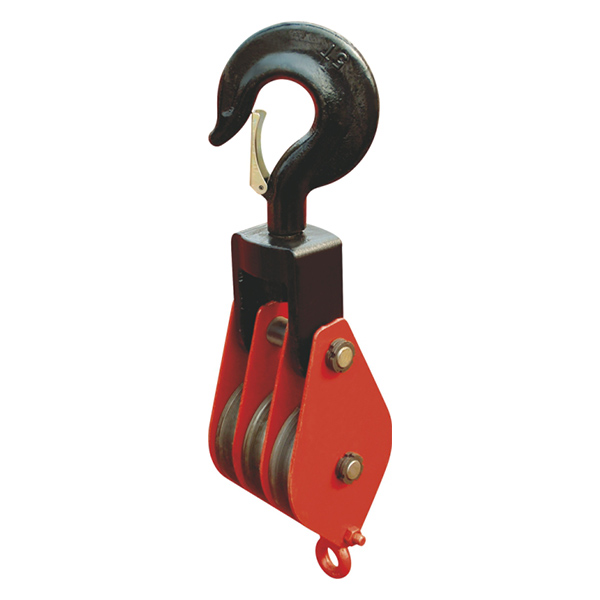

| Three wheel block | |||||
| HQG3-3.2 | 3.2 | 51.2 | 7.7 | 11 | 9.87 |
| HQG3-5 | 5 | 80 | 11 | 14 | 16.71 |
| HQG3-8 | 8 | 128 | 12.5 | 15.5 | 28.65 |
| HQG3-10 | 10 | 160 | 15.5 | 18.5 | 49.09 |
| HQG3-16 | 16 | 224 | 17 | 20 | 74.28 |
| HQG3-20 | 20 | 280 | 20 | 23 | 105.14 |
| HQG3-32 | 32 | 512 | 35 | 38 | 300 |
| HQD3-3.2 | 3.2 | 51.2 | 7.7 | 11 | 9.24 |
| HQD3-5 | 5 | 80 | 11 | 14 | 15.35 |
| HQD3-8 | 8 | 128 | 12.5 | 15.5 | 25.27 |
| HQD3-10 | 10 | 160 | 15.5 | 18.5 | 45.32 |
| HQD3-16 | 16 | 224 | 17 | 20 | 58.17 |
| HQD3-20 | 20 | 280 | 20 | 23 | 85.59 |
| HQD3-32 | 32 | 448 | 26 | 28 | 187.86 |
| HQD3-50 | 50 | 700 | 31 | 35 | 359.98 |
| Model | Capacity (kg) | Table size (mm) | Working height (mm) | ||||||||
| A | B | C | D | E | F | G | H | I | J | ||
| DCQY6-0.8 | 6000 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2080 | 1000 | 800 | 1800 |
| DCQY10-0.8 | 10000 | 7500 | 2400 | 1000 | 300 | 11200 | 2000 | 2100 | 1000 | 800 | 1800 |
| Model | Crimping force (T) | Stroke (mm) | Length (mm) | Weight (kg) | Accessories (mm2) |
| JT-1632 | 6 | 45 | 580 | 5.05 | 16,20,26,32 |
| Model | Crimping range (mm2) | Max pressure (T) | Max travel (mm) | Accessories (mm2) |
| YQK-70 | 4-70 | 6 | 12 | 4,6,8,10,16,25,35,50,70 |
| YQK-120C | 10-120 | 8 | 14 | 10,16,25,35,50,70,95,120 |
| YQ-300C | 16-300 | 10 | 20 | 16,25,35,50,70,95,120, 150,185,240,300 |
| YQ-400C-1 | 16-400 | 12 | 22 | 16,25,35,50,70,95,120, 150,185,240,300,400 |
| Model | Crimping range (mm2) | Max pressure (T) | Max travel (mm) | Accessories (mm2) |
| YQK-120 | 10-120 | 8 | 10 | 10,16,25,35,50,70,95,120 |
| YQK-240 | 16-240 | 10 | 18 | 16,25,35,50,70,95,120, 150,185,240 |
| YQK-300 | 16-300 | 10 | 18 | 16,25,35,50,70,95,120, 150,185,240,300 |
| YQK-300A1 | 16-300 | 12 | 20 | 16,25,35,50,70,95,120, 150,185,240,300 |
| YQ-400C | 16-400 | 12 | 22 | 16,25,35,50,70,95,120, 150,185,240,300,400 |
| Model | Crimping range (mm2) | Max pressure (T) | Max travel (mm) | Accessories (mm2) |
| YQ-240LM | 10-240 | 12 | 22 | 16,25,35,50,70,95,120, 150,185,240 |
| YQ-240LK | 10-240 | 12 | 22 | 16,25,35,50,70,95,120, 150,185,240 |
