Pallet Trucks Warehouse Equipments Series

Hand Pallet Truck TBF

Hand Pallet Truck TBF

Product Details

Product Parameter

Model TBF
Capacity kg 2500/3000 2500/3000
Lowered fork height mm 85 75
Steeling wheel mm Φ200 Φ180
Fork wheel single mm Φ80×93 Φ74×93
Fork wheel tandem mm Φ80×70 Φ74×70
Max.lift height mm 200 190
Total height mm 1224 1214
Overall length mm 1483/1533/1603 1483/1533/1603
Fork length mm 1100/1150/1220 1100/1150/1220
Width overall forks mm 520/550/685 520/550/685
Ground clearance ,centre of wheelbase mm 40 30
Turning radius Wa(mm) 1216/1266/1336 1216/1266/1336
Service weight kg 60-75 60-75
Categories
Pallet Trucks Warehouse Equipments Series

Hand Pallet Truck TDB

Hand Pallet Truck TDB

Product Details

Product parameter

Model TDB
Capacity Kg 2000/2500/3000
Lowered fork height (mm) 85 75
Max.lift height (mm) 200 180
Steeling wheel (mm) Φ 200 Φ 180
Fork wheel single (mm) Φ 80×93 Φ 74×93
Fork wheel tandem (mm) Φ 80×70 Φ 74×70
Fork length (mm) 1150/1220 1150/1220
Width overall forks (mm) 520/550/685 520/550/685
Total height (mm) 1232 1222
Overall length (mm) 1533/1603 1533/1603
Turning radius (mm) 1265/1335 1265/1335
Material of wheel PU/Nylon/Rubber
Service weight Kg 55-70 55-70
Categories
Pallet Trucks Warehouse Equipments Series

Scale Pallet Truck BFC

Scale Pallet Truck BFC

Product Details

Product parameter

Model BFC
Rated load Kg 2500
Minimum fork height H(mm) 85
Maximum fork height after lifting H1(mm) 200
Max. lifting stroke mm ≥110
Fork outside width B(mm) 540/685
Inside fork width mm 220/365
Fork working length L(mm) 1150/1220
Single fork width e(mm) 160
Fork thickness s(mm) 50
Overall length L1(mm) 1570-1640
Overall width mm 540/685
Overall vehicle height H2(mm) 1245
Cylinder lift rod diameter mm Φ31.5
Load-bearing double wheel size mm Φ80×70
Steering wheel size mm Φ180×50
Min. turning radius mm 1350/1450
Wheel material PU
Self-weight Kg 110/120
Categories
Pallet Trucks Warehouse Equipments Series

Galvanized Hand Pallet Truck BFG

Galvanized Hand Pallet Truck BFG

Product Details

Product parameter

Model BFG
Capacity Q(kg) 2500
Lowered fork height h13(mm) 85/75
Steering wheel mm Φ200/Φ180
Fork wheel single mm Φ80×93/Φ74×93
Fork wheel tandem mm Φ80×70/Φ74×70
Max. lift height h3(mm) 200/190
Total height h14(mm) 1224/1214
Overall length I1(mm) 1533/1603
Fork dimensions s/e/I 45/160/1150(1220)
Width overall forks b5(mm) 520/550/685
Ground clearance, centre of wheelbase m2(mm) 40/30
Aisle width for pallets 1000×1200 crossways Ast(mm) 1733/1803
Aisle width for pallets 800×1200 lengthways Ast(mm) 1783/1803
Turning radius Wa(mm) 1266/1336
Service weight kg 65-80
Categories
Pallet Trucks Warehouse Equipments Series

Stainless Hand Pallet Truck BFS

Stainless Hand Pallet Truck ACZ

Product Details

Product parameter

Model BFS
Capacity Q(kg) 2500
Lowered fork height h13(mm) 85/75
Steering wheel mm Φ200/Φ180
Fork wheel single mm Φ74×93
Fork wheel tandem mm Φ74×70
Max. lift height h3(mm) 200/190
Total height h14(mm) 1224/1214
Overall length I1(mm) 1533/1603
Fork dimensions s/e/I 45/160/1150(1220)
Width overall forks b5(mm) 520/550/685
Ground clearance, centre of wheelbase m2(mm) 40/30
Aisle width for pallets 1000×1200 crossways Ast(mm) 1733/1803
Aisle width for pallets 800×1200 lengthways Ast(mm) 1783/1803
Turning radius Wa(mm) 1266/1336
Service weight kg 76-88
Categories
Pallet Trucks Warehouse Equipments Series

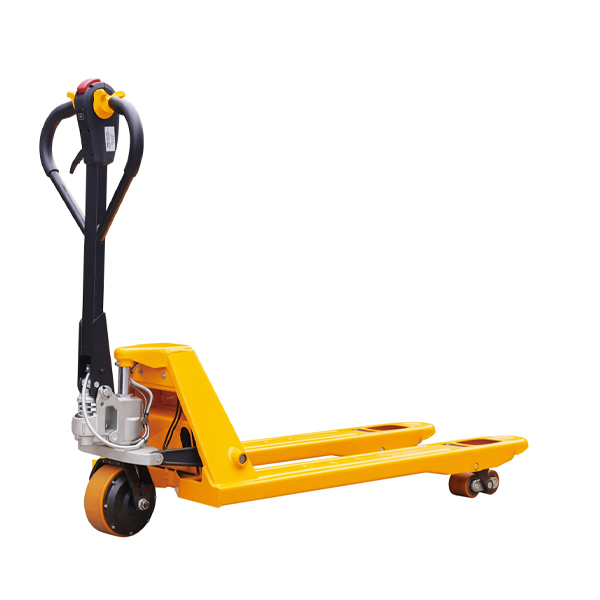

Semi Electric Pallet Truck with Lithium Battery CBD15

Semi Electric Pallet Truck with Lithium Battery CBD15

Product Details

Product parameter

Model CBD15
Rated load kg 1500
Fork lowest height H1 (mm) 85
Max. fork height H (mm) 200
Overall length L (mm) 1540/1610
Wheel-base lenght Y (mm) 1270
Fork size lxexs (mm) 1150(1220)x160x55
Overall height H2 (mm) 1300
Carrying wheel mm Φ 80×70
Driving wheel mm Φ 130×55
Turning radiua Wa  wa  ( mm) 1426
Drive motor V/Kw 24/0.45
Battery V/Ah  锂电池 Lithium battery  24/20
Net weight kg 115
Categories
Pallet Trucks Warehouse Equipments Series

Electric Walkie Pallet Truck CBD15P/CBD20P

Electric Pallet Truck with Lithium Battery EPT

Product Details

Product parameter

Model CBD15P CBD20P
Drive battery/电动 battery/电动
Operator Type Pedestrian/步行 Pedestrian/步行
Capacity kg 1500 2000
Load center mm 600 600
wheel base mm 1220 1220
Net Weight kg 128 138
Wheel material Pu/steel core Pu/steel core
Drive wheel size, number mm Φ 190*70/1 Φ 190*70/1
Load roller size, number mm Φ 80*70/4 Φ 80*70/4
Lifting height mm 75-190/85-190 75-190/85-190
Height of tiller in drive position Min/Max mm 1200 1200
Min fork height mm 85 85
Totally length mm 1540 1540
Totally Width mm 560/680 560/680
single fork dimensions mm 160*1150/160*1220 160*1150/160*1220
Ground clearance mm 30 30
Min.Right-angle stack channel width,
(pallet size 1000X1200,1200 placed along
cargo fork)		 mm 1500 1500
Turning Radius mm 1350 1350
Drive Speed with/ without loading km/h 4.5 4.5
Lifting speed with/without loading mm/s 22/17 22/17
Lowering speed with/without loading mm/s 26/30 26/30
Gradient % 6/10 6/10
Brake Electromagnetic brake Electromagnetic brake
Power of Drive motor w 750w 800w
Power of lifting motor w 500w 600w
Battery capacity V/AH 48v 12ah 48v 15ah
Battery weight kg 4.5kg 4.5kg
Charging time H 2h 2.5h
Working time after full charge H >2h >2h
Categories
Pallet Trucks Warehouse Equipments Series

Electric Pallet Truck CBD20/CBD30

Electric Pallet Truck CBD20/CBD30 1

Product Details

Product parameter

Model CBD20 CBD30
Capacity Q(Kg) 2000 3000
Load center C(mm) 800 600
Type of lifting Electric Electric
Operating type Stand Walkie/Stand
Material PU PU
Wheel base Y(mm) 1430 1500
Quantity of Driving/Balance/Bearing Wheel 1x+2/4 1x+2/4
Bearing wheel size mm Ф80×70 Ф80×70
Driving wheel size mm Ф230×75 Ф230×75
Balance wheel size mm Ф100×50 Ф100×50
Min.fork height h13(mm) 85 85
Max.fork height mm 200 200
Max.lifting height h3(mm) 115 115
Fork outside width b5(mm) 685 560/685
Fork inside width b11(mm) 365 200/325
Fork length I(mm) 1150 1150
Single fork size e/s(mm) 160/50 180/60
Overall length L1(mm) 2090 2300
Overall width b1(mm) 730 800
Overall height H14(mm) 1300 1355
Handle vertical height mm 1039/1300 1040/1355
Min.turning radius Wa(mm) 1845 1745
Travel speed(laden/unladen) km/h 4/5 5/6
Lifting speed(laden/unladen) mm/s 15/22 21.6/35.5
Lowering speed(laden/unladen) mm/s 18/12 28.6/25
Fast/slow adjustment function Yes Yes
Gradient climbing % ≦5 6
Driving mode AC AC
Drive motor V/Kw 24/1.5 24/2.5
Lift motor V/Kw 24/0.8 24/2.2
Battery capacity V/Ah 24/170 24/280
Charger V/A 24/30 24/30
Battery weight kg 155 250
Net weight kg 640 780



Categories
Pallet Trucks Warehouse Equipments Series

Electric Pallet Truck CBD20X

Electric Pallet Truck CBD20X

Product Details

Product parameter

Model CBD20X
Capacity Q(Kg) 2000
Load center C(mm) 600
Type of lifting Electric
Operating type Walkie
Material PU
Wheel base Y(mm) 1230/1300
Quantity of Driving/Balance/Bearing Wheel 1x+2/4
Bearing wheel size mm Ф80×70
Driving wheel size mm Ф210×75
Balance wheel size mm Ф75×46
Min.fork height h13(mm) 85
Max.fork height mm 200
Max.lifting height h3(mm) 115
Fork outside width b5(mm) 560/685
Fork inside width b11(mm) 240/365
Fork length I(mm) 1150/1220
Single fork size e/s(mm) 160/50
Overall length L1(mm) 1650/1720
Overall width b1(mm) 685
Overall height H14(mm) 1220
Handle vertical height mm 1220
Min.turning radius Wa(mm) 1385/1455
Travel speed(laden/unladen) km/h 4/5
Lifting speed(laden/unladen) mm/s 25/30
Lowering speed(laden/unladen) mm/s 30/20
Fast/slow adjustment function Yes
Gradeability % ≦4
Driving mode DC
Drive motor V/Kw 24V 0.75KW
Lift motor V/Kw 24V 0.8KW
Battery capacity V/Ah 2×12/80
Charger V/A 24V 12A
Battery weight kg 24
Net weight kg 230
