Slings Slings & Chains Series

Endless Sling F7-W3

Endless Sling

Product Details

Product parameter

Web width (mm)
Single ply		 Colour coded according
to DIN-EN
1492-1		 Working Load Limit with 1 web sling Working Load Limit with 2 web sling
Straight lift Choked lift  β Straight lift up to
45°		 Choked lift up to
45°		 Straight lift
45°-60°		 Choked lift
45°-60°
0°-7° 7°-45° 45°-60° up to
45°		 45°-60°
1.0 0.8 2.0 1.4 1.0 0.7 0.5 1.4 1.12 1 0.8
30 1000 800 2000 1400 1000 700 500 1400 1120 1000 800
60 2000 1600 4000 2800 2000 1400 1000 2800 2240 2000 1600
90 3000 2400 6000 4200 3000 2100 1500 4200 3360 3000 2400
120 4000 3200 8000 5600 4000 2800 2000 5600 4480 4000 3200



Web width (mm)
Double ply		 Colour coded according
to DIN-EN
1492-1		 Working Load Limit with 1 web sling Working Load Limit with 2 web sling
Straight lift Choked lift β Straight lift up to
45°		 Choked lift up to
45°		 Straight lift
45°-60°		 Choked lift
45°-60°
0°-7° 7°-45° 45°-60° up to
45°		 45°-60°
1.0 0.8 2.0 1.4 1.0 0.7 0.5 1.4 1.12 1.0 0.8
50 2000 1600 4000 2800 2000 1400 1000 2800 2240 2000 1600
65 3000 2400 6000 4200 3000 2100 1500 4200 3360 3000 2400
75 4000 3200 8000 5600 4000 2800 2000 5600 4480 4000 3200
100 6000 4800 12000 8400 6000 4200 3000 8400 6720 6000 4800
125 8000 6400 16000 11200 8000 5600 4000 11200 8960 8000 6400
Categories
Slings Slings & Chains Series

Round Sling R7-04

Round Sling

Product Details

Product parameter

The round slings are easy to use, efficient in operation and gentle on surface contact. All round slings are colour coded to give easy identification of the safe working load. They come with a label giving length and ton-nage. The round sling inner core is made from high tensile polyester fibre which is wound continuously without a join to provide the maximum possible strength. This core is protected by a tough woven tubular sleeve also made from polyester without side stitch. It serves to protect both the inner core of the sling and the surface of the product when it is lifting.



Colour Colour coded according
to DIN-EN
1492-2		 Working Load Limit with 1 web sling Working Load Limit with 2 web sling
Straight lift Choked lift  β Straight lift up to
45°		 Choked lift up to
45°		 Straight lift
45°  -60°		 Choked lift
45°-60°
0°-7° Bis7° 7°-45° 45°-60° 45°-60°
1.0 0.8 2.0 1.4 1.0 0.7 0.5 1.4 1.12 1.0 0.8
Purple 1000 800 2000 1400 1000 700 500 1400 1120 1000 800
Green 2000 1600 4000 2800 2000 1400 1000 2800 2240 2000 1600
Yellow 3000 2400 6000 4200 3000 2100 1500 4200 3360 3000 2400
Grey 4000 3200 8000 5600 4000 2800 2000 5600 4480 4000 3200
Red 5000 4000 10000 7000 5000 3500 2500 7000 5600 5000 4000
Brown 6000 4800 12000 8400 6000 4200 3000 8400 5720 6000 4800
Blue 8000 6400 16000 11200 8000 5600 4000 11200 5960 8000 6400
Orange 10000 8000 20000 14000 10000 7000 5000 14000 11200 10000 8000
Orange 12000 9600 24000 16800 12000 84000 6000 16800 13440 12000 9600
Orange 15000 12000 30000 21000 15000 10500 7500 21000 16800 15000 12000
Orange 20000 16000 40000 28000 20000 14000 10000 28000 22400 20000 16000
Orange 30000 24000 60000 42000 30000 21000 15000 42000 33600 30000 24000
Orange 40000 32000 80000 56000 40000 28000 20000 56000 44800 40000 32000
Orange 50000 40000 100000 70000 50000 35000 25000 70000 56000 50000 40000
Orange 60000 48000 120000 84000 60000 42000 30000 84000 57200 60000 48000
Categories
Slings Slings & Chains Series

Webbing Sling F7-W1 F7-W2

Web Sling

Product Details

Product parameter

Physical information chart Flat eye
Material Polyester Reversed eye
Elongation at breaking force ca.12% Folded eye 1/2 width from 1 side
Elongation at WLL ca.3% Folded eye 1/2 width from 2 side
Elongation-resistance in wet condition 100% Folded eye 1/3 width
Compared wear-resistance 80
Specific weight 1.38



Colour coded according
to DIN-EN
1492-1		 Working Load Limit with 1 web sling Working Load Limit with 2 web sling
Straight lift Choked lift β Straight lift up to
45°		 Choked lift up to
45°		 Straight lift
45°  -60°		 Choked lift
45°  -60°
0° -7° 7°  -45° 45°  -60°
1.0 0.8 2.0 1.4 1.0 1.4 1.12 1.0 0.8
1000 800 2000 1400 1000 1400 1120 1000 800
2000 1600 4000 2800 2000 2800 2240 2000 1600
3000 2400 6000 4200 3000 4200 3360 3000 2400
4000 3200 8000 5600 4000 5600 4480 4000 3200
5000 4000 10000 7000 5000 7000 5600 5000 4000
6000 4800 12000 8400 6000 8400 6720 6000 4800
8000 6400 16000 11200 8000 12000 8960 8000 6400
10000 8000 20000 14000 10000 14000 11200 10000 8000
16000 12800 32000 22400 16000 24000 17920 16000 12800
20000 16000 40000 24000 20000 28000 22400 20000 16000
24000 19200 48000 33600 24000 36000 26880 24000 19200
Categories
Cargo Lashings Slings & Chains Series

European type Cargo Lashing

Cargo Lashing

Product Details

Product parameter

Model Width
(mm)		 LC daN LC daN Cam Buckle

Tie Down
75-2-JD 75 5000 10000
50A-2-JD 50 2500 5000
50B-2-JD 50 2000 4000
35A-2-JD 35 1500 3000 Model Width
(mm)		 LC daN
35B-2-JD 35 1000 2000 25D-1 25 250
28-2-JD 25 750 1500 35D-1 35 900
25A-2-JD 25 500 1000
25B-2-JD 25 400 800
25C-2-JD 25 250 500
Endless assembles is available



Follows end fitting is available
triangle/forged hook combination 75-2-TH
forged hook with triangle 75-2-FT
elephant foot triangle combination 75-2-ET
screw-fit triangle 75-2-ST
flat snap hook 50A-2-FS
falt hook 50A-2-FH
jhook,double with keeper 50A-2-JK
twisted snap hook 35-2-TS
jhook,single 35-2-JS
claw hook 35-2-CH
lacing hook for forming loops 35-2-LH
snap hook,flat 25A-2-SF
lacing hook for forming loops 25A-2-LH
screw-fit triangle 25A-2-ST
Categories
Cargo Lashings Slings & Chains Series

US. type Cargo Lashing

Cargo Lashing

Product Details

Product parameter

Model Web strap width(ln) Working load limit(Lbs) Breaking strength(Lbs) End fitting style
4A-2-JD 4 6665 20000 Double J Hook
4B-2-JD 4 5000 15000 Double J Hook
4B-2-CH 4 5000 15000 Anchor Chain Hook
4B-2-FH 4 5000 15000 Flat Hook
3A-2-JD 3 5000 15000 Double J Hook
3A-2-CH 3 5000 15000 Anchor Chain Hook
3A-2-FH 3 5000 15000 Flat Hook
2A-2-JD 2 3300 10000 Double J Hook
2A-2-CH 2 3300 10000 Anchor Chain Hook
2A-2-FH 2 3300 10000 Flat Hook
2A-2-HK 2 3300 10000 Grab Hook
2A-2-TS 2 3300 10000 Twisted Snap Hook



Model Web strap width(ln) Working load limit(Lbs) Breaking strength(Lbs) End fitting style
Ratchet Straps
1A-2-S 1 1000 3000 S Hook
1A-2-DJ 1 1000 3000 Double J Hook
1A-2-SP 1 1000 3000 S Hook PVC coated
1B-2-S 1 700 2100 S Hook
1B-2-DJ 1 700 2100 Double J Hook
1B-2-SP 1 700 2100 S Hook PVC coated
1C-2-S 1 500 1500 S Hook
1C-2-DJ 1 500 1500 Double J Hook
1C-2-SP 1 500 1500 S Hook PVC coated
Cam Buckle
1D-2-S 1 334 1000 S Hook
1D-2-DJ 1 334 1000 Double J Hook
1D-2-SP 1 334 1000 S Hook PVC coated
1D-1 1 334 1000 Endless
1E-2-S 1 250 750 S Hook
1E-2-DJ 1 250 750 Double J Hook
1E-2-SP 1 250 750 S Hook PVC coated
1E-1 1 250 750 Endless
1F-2-S 1 167 500 S Hook
1F-1 1 167 500 Endless
Categories
Chains Slings & Chains Series

Calibrated Load Chain G80

Lifting Chain G80

Product Details

Product parameter

d (mm) t (mm) L (mm) b (mm) b2 (mm) Test Load Breaking
Load min.		 Elongation when breaking
Normal -Tol Normal +Tol Normal +Tol Normal +Tol Normal KN KN
5 -0.10 15 +0.29 165 +0.785 17 +0.38 6.3 15.80 31.6 >10%
6 -0.12 18 +0.35 198 +0.941 20 +0.45 7.50 22.70 45.4 >10%
7 -0.14 21 +0.41 231 +1.098 23 +0.54 8.875 31.70 63.4 >10%
8 -0.16 24 +0.46 264 +1.255 26 +0.60 10.00 40.30 80.8 >10%
9 -0.18 27 +0.52 291 +1.412 30 +0.68 11.25 51 102 >10%
10 -0.2 30 +0.58 330 +1.569 33 +0.75 12.50 63.00 126 >10%
Categories
Chains Slings & Chains Series

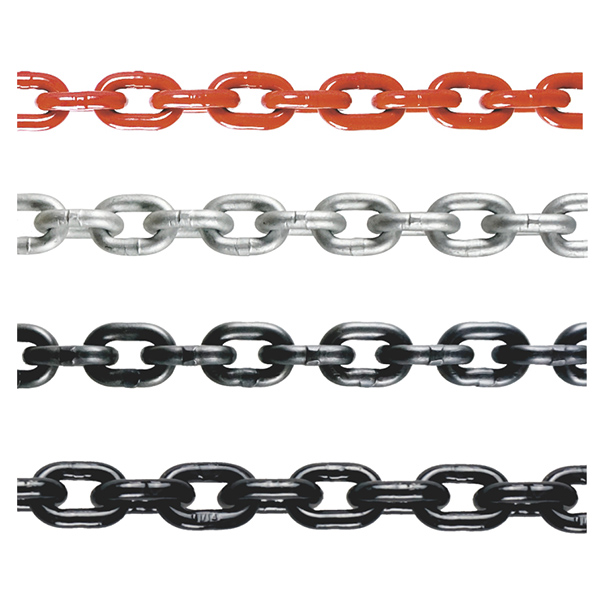

Lifting Chain G80

Lifting Chain G80

Product Details

Product parameter

Size d×t Width Approx
Weight		 Working
Load Limit		 Test Load Breaking
Load min.
lnside min Outside max.
mm b2  (mm) b (mm) kg/m T kN kN
6×18 7.5 21 0.79 1.1 27 45.2
7×21 9 24.5 1.07 1.5 37 61.6
8×24 10 28 1.38 2 48 80.4
10×30 12.5 35 2.2 3.2 76 125
13×39 16.3 46 3.8 5 128 214
16×48 20 56 5.63 8 192 320
20×60 25 70 8.6 12.5 300 500
22×66 28 77 10.2 15.3 366 610
26×78 35 91 14.87 21.3 510 850
32×96 40 106 22.29 32.2 772 1286
Categories
Chains Slings & Chains Series

Long Link Chain G80

Long link chain G80

Product Details

Product parameter

Size
(mm)		 Chain Diameter
(mm)		 Width (mm) Weight
(Kg/m)		 Breaking Load Min.
(KN)
lnside min Outside max.
7×45 7 10 25.5 0.83 61.6
9×53 9 15 35 1.4 102
11×63 11 18 43 2.18 152
13×80 13 22 51 2.97 212
16×100 16 26 61 4.44 322
19×100 19 27 68 6.5 454
22×120 22 37 84 8.76 608
28×150 28 44 103 14.13 984
Categories
Chains Slings & Chains Series

Electro Galvanized Binder Chain

Electro Galvanized Binder Chain

Product Details

Product parameter

Size ASTM80  NACM90  NACM96 Pcs Per Drum
W.T
(kg)		 W.L.L
(lb)		 Mbs
(lb)		 W.T
(kg)		 W.L.L
(lb)		 Mbs
(Ib)		 W.T
(kg)		 W.L.L
(lb)		 Mbs
(lb)
Grade 43
1/4×14 5 2600 7500 4.5 2600 7500 4.5 2600 7500 50
1/4×16 6 2600 7500 5 2600 7500 5 2600 7500 40
5/16×14 7.5 3900 11600 6 3900 9700 7 3900 11700 35
5/16×16 8.5 3900 11600 6.8 3900 9700 8 3900 11700 30
5/16×18 9.5 3900 11600 7.5 3900 9700 9 3900 11700 30
5/16×20 10.5 3900 11600 8 3900 9700 9.5 3900 11700 25
5/16×25 13 3900 11600 10 3900 9700 12 3900 11700 20
5/16×30 15.5 3900 11600 12 3900 9700 14 3900 11700 20
3/8×14 10.5 5400 16200 9.5 5400 15200 10 5400 16200 25
3/8×16 12 5400 16200 11 5400 15200 11.5 5400 16200 25
3/8×20 15 5400 16200 13.5 5400 15200 13.5 5400 16200 20
3/8×25 18.5 5400 16200 16.5 5400 15200 17.5 5400 16200 20
