A beam trolley drifts when it moves along the beam without the movement the operator intended. The cause may be outside the trolley, such as a sloped beam or swinging load, or within the trolley, such as incorrect fit, uneven wheel condition, bearing resistance, or a powered travel fault.
The pattern of movement is the first useful clue. Note whether the trolley moves when empty or loaded, always travels in one direction, drifts only at one part of the beam, or continues moving after a powered travel command stops.
Relevant Liftool category: beam trolleys.
Quick Answer
Common causes of beam trolley drift include beam slope, incorrect trolley adjustment, incompatible wheel or flange geometry, uneven wheel or bearing condition, contamination on the travel surface, load swing, side pulling, vibration, and electric travel brake or control problems.
Do not start by modifying the trolley or adding an improvised stop. Secure the work area, remove the load when this can be done safely, record when and where the movement occurs, and have the beam, trolley fit, wheels, fasteners, bearings, load path, and powered travel system checked against the equipment instructions.
Is It Drift or Normal Coasting?
A manual push trolley is designed to roll with relatively low resistance. After it is pushed, it may continue moving briefly because of momentum. That is different from a stationary trolley beginning to move on its own or repeatedly rolling toward the same end of the beam.
The acceptable stopping behavior of an electric trolley depends on its design, speed, brake, controls, load, and installation. A powered trolley that continues farther than expected, changes stopping distance, or moves after the command is released needs model-specific inspection.
Do not assume that end stops solve the problem. End stops limit travel at the beam ends; they are not a substitute for correcting uncontrolled movement.
What the Drift Pattern Can Indicate
| Observed behavior | Possible areas to check |
|---|---|
| Empty trolley always moves in the same direction | Beam slope, installation alignment, wheel or bearing resistance, trolley adjustment |
| Drift appears mainly with a suspended load | Load swing, off-center loading, side pull, rigging geometry, beam slope |
| Drift occurs only at one beam location | Local beam condition, joint, obstruction, contamination, flange variation, alignment |
| One side of the trolley binds or tracks poorly | Wheel wear, side-plate spacing, fasteners, bearing condition, incompatible beam flange |
| Electric trolley travels after the control is released | Brake, contactor, pendant, control circuit, drive, adjustment, power conditions |
| Movement begins after nearby equipment operates | Vibration, impact, shared structure movement, load motion |
This table narrows the inspection area; it does not identify a defect by itself.
Common Causes of Beam Trolley Drift
1. Beam slope or alignment
A trolley can roll toward the lower end of a sloped beam. Even a small installation or structural deviation may become noticeable on a free-running manual trolley. The beam and its supports should be assessed using the project requirements and an appropriate measurement method rather than judged only by eye.
If drift occurs at one location instead of along the full travel, check for a local change in the flange, a connection point, damage, debris, or another irregularity.
2. Incorrect trolley fit
Beam trolleys are adjusted for a permitted flange width and geometry. Excessive clearance, uneven side-plate spacing, incorrect washer placement, loose fasteners, or a wheel profile that does not match the beam can affect tracking.
The trolley must also suit the beam's straight or curved path. A trolley that is not approved for the curve radius or flange profile may bind, skew, or travel unpredictably.
3. Uneven wheels or bearings
Worn wheel treads, damaged flanges, bearing problems, unequal wheel contact, corrosion, or contamination can make one side roll differently from the other. The result may look like drift, skewing, intermittent resistance, or a change in the force needed to move the trolley.
Inspect both sides as a set. Replacing or adjusting one visible part without checking the opposite side can leave the underlying imbalance unresolved.
4. Load swing and side pull
A suspended load can pull the trolley as it swings. This may happen when the hook is not vertically above the load, the load is pushed by hand, the hoist lifts while out of line, or travel starts and stops abruptly.
The trolley may appear to drift after the operator stops pushing it, when the actual force comes from the moving load. Center the hook over the intended lifting point and control the travel path according to the hoist, trolley, and site instructions.
5. External vibration or impact
Nearby machinery, another crane motion, structural vibration, wind in an exposed area, or contact with the load can initiate movement. Record whether drift coincides with another event. This helps separate an installation or operating-condition issue from a trolley component problem.
6. Powered travel brake or control faults
For an electric trolley, check the complete travel system rather than only the wheels. Possible areas include brake condition and adjustment, drive components, contactors, pendant controls, wiring, limit devices, and the power supply.
Electrical and brake inspection should be performed under the required isolation procedure by a person qualified for the equipment. Do not continue operating a powered trolley that moves without a travel command.
A Practical Troubleshooting Sequence
- Control the area. Keep people clear of the load path and avoid further loaded travel until the behavior is understood.
- Describe the event. Record direction, beam location, load condition, travel mode, recent maintenance, and whether another motion preceded the drift.
- Remove load influence. When the equipment can be unloaded safely, compare loaded and unloaded behavior without using an improvised test load.
- Check the load path. Review hook position, rigging alignment, load swing, side pull, obstructions, and contact with surrounding equipment.

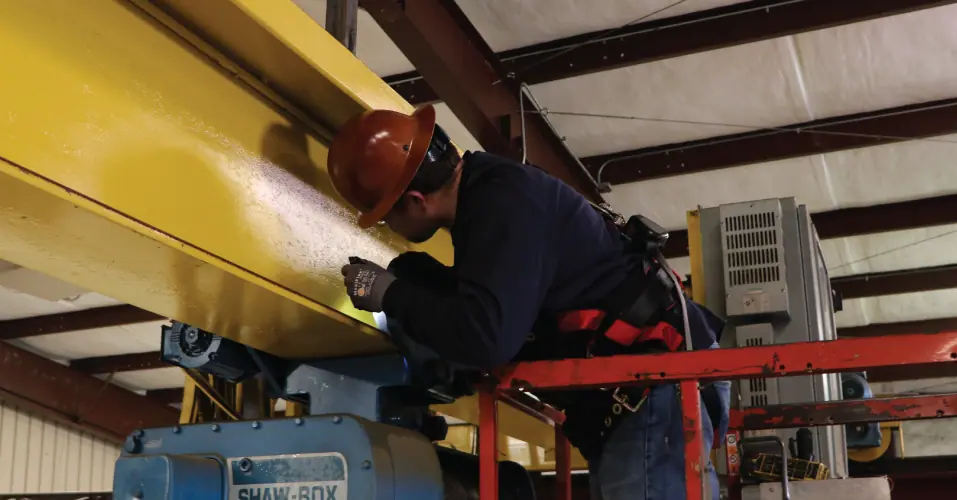

- Inspect the beam and trolley. Check the travel surface, flange condition, end stops, wheels, bearings, side plates, fasteners, adjustment, and visible damage.
- Check powered components. For electric travel, isolate the equipment and inspect the drive, brake, controls, and electrical system using the exact model instructions.
- Use a controlled return-to-service check. After an identified problem is corrected, test the trolley under the site's approved procedure before normal lifting resumes.
For U.S. general-industry overhead and gantry cranes within its scope, OSHA 29 CFR 1910.179 addresses inspection, preventive maintenance, energy isolation before repairs, avoiding side pulls, positioning the hook to prevent load swing, and controlled acceleration and deceleration. Apply the requirements that govern the actual installation; this reference does not replace the trolley and hoist instructions or local rules.
Avoid forcing a binding trolley, altering wheel flanges, adding unapproved friction devices, or using wedges and loose objects as parking stops. A modification can create a new load path or hide the real cause.
Choosing a Trolley That Fits the Application
Correct selection reduces installation and control problems. Compare the movement required:
- A hand beam trolley suits applications where the load can be positioned by controlled manual travel.
- A geared trolley can provide more deliberate manual positioning where direct pushing is unsuitable.
- An electric beam trolley supports powered travel where frequency, distance, speed, or process control makes manual movement impractical.
The trolley type alone is not enough. Confirm rated capacity, beam flange width and profile, straight or curved travel, minimum curve requirement, wheel arrangement, suspension compatibility, headroom, travel distance, environment, power supply, controls, duty, and required documentation.
For the difference between a fixed attachment and a travelling suspension point, see Beam Clamps vs Beam Trolleys.
For routine pre-use and travel checks, see How to Use a Push Pull Trolley Safely.
Information to Send with a Trolley Inquiry
Provide:
- maximum and typical load;
- beam section, flange width, flange thickness, and travel profile;
- straight travel length and any curves or joints;
- hoist type and suspension arrangement;
- required manual, geared, or electric travel;
- available power and preferred controls for electric travel;
- indoor, outdoor, corrosive, dusty, or other environmental conditions; and
- any unusual slope, vibration, stopping, positioning, or parking requirement.
Photos can help identify the arrangement, but dimensions, ratings, and installation information are still needed for selection.
FAQ
Why does an unloaded manual trolley roll to one end?
A consistent direction of movement often points to beam slope, installation alignment, trolley adjustment, or unequal rolling resistance. Check the beam and trolley together instead of assuming the wheels alone are responsible.
Can tightening the trolley stop drift?
Not as a general fix. Trolley spacing and fasteners must match the approved configuration. Overtightening or reducing clearance without the instructions can cause binding, wheel loading, or poor tracking.
Can load swing make a trolley move?
Yes. A swinging or off-center suspended load can apply horizontal force to the trolley. Check hook alignment, rigging, travel technique, and the full load path.
Should a trolley have a parking brake?
Some applications or trolley designs include braking or parking provisions, while others do not. Treat this as a model and application requirement. Do not improvise a parking device or assume end stops perform that function.
What information helps diagnose an electric trolley that will not stop consistently?
Record travel direction, speed, load, stopping distance, control input, frequency of the event, recent work, and any unusual sound or vibration. A qualified person can then inspect the brake, drive, controls, wiring, and mechanical travel system against the model documentation.
