Product parameter
| Galv Malleable Wire Rope Clips Type A | |
| Type A | |
| Rope Size (mm) |
Weight (kg/100pc) |
| 6 | 2.5 |
| 8 | 4.5 |
| 10 | 9.0 |
| 12 | 18.0 |
| 15 | 28.0 |
| 20 | 47.0 |
| 22 | 62.0 |
| 25 | 85.0 |
| 28 | 120.0 |
| 32 | 157.0 |
| 40 | 261.0 |
| 45 | 363.0 |
| 50 | 480.0 |
Month: July 2021
Product parameter
| Din 1142 Galv Malleable Wire Rope Clips | |
| DIN1142 | |
| Rope Size (mm) |
Weight Each (kg/pc) |
| 5 | 0.021 |
| 6.5 | 0.040 |
| 8 | 0.082 |
| 10 | 0.092 |
| 13 | 0.275 |
| 16 | 0.430 |
| 19 | 0.490 |
| 22 | 0.680 |
Product parameter
| Din 741 Galv Malleable Wire Rope Clips | |
| DIN 741 | |
| Rope Size (mm) |
Weight Each (kg/pc) |
| 3 | 0.014 |
| 5 | 0.015 |
| 6.5 | 0.021 |
| 8 | 0.041 |
| 10 | 0.068 |
| 11 | 0.072 |
| 13 | 0.130 |
| 14 | 0.135 |
| 16 | 0.210 |
| 19 | 0.280 |
| 22 | 0.400 |
| 26 | 0.440 |
| 30 | 0.660 |
| 34 | 0.850 |
| 40 | 1.040 |
Product parameter
| Aluminum Ferrules | |||||
| Size(mm) | A(mm) | B(mm) | S(mm) | L(mm) | Weight(kgs/1000pcs) |
| 1 | 1.2 | 2.4 | 0.65 | 5 | 0.098 |
| 1.5 | 1.7 | 3.4 | 0.75 | 6 | 0.176 |
| 2 | 2.2 | 4.4 | 0.85 | 7 | 0.285 |
| 2.5 | 2.7 | 5.4 | 1.05 | 9 | 0.439 |
| 3 | 3.3 | 6.6 | 1.25 | 11 | 0.907 |
| 3.5 | 3.8 | 7.6 | 1.5 | 13 | 1.18 |
| 4 | 4.4 | 8.8 | 1.7 | 14 | 1.63 |
| 4.5 | 4.9 | 9.8 | 1.9 | 16 | 2.39 |
| 5 | 5.5 | 11.0 | 2.1 | 18 | 3.62 |
| 6 | 6.6 | 13.2 | 2.5 | 21 | 5.84 |
| 6.5 | 7.2 | 14.4 | 2.7 | 23 | 7.18 |
| 7 | 7.8 | 15.6 | 2.9 | 25 | 9.83 |
| 8 | 8.8 | 17.6 | 3.3 | 28 | 12.96 |
| 9 | 9.9 | 19.8 | 3.7 | 32 | 18.94 |
| 10 | 10.9 | 21.8 | 4.1 | 35 | 24.09 |
| 11 | 12.1 | 24.2 | 4.5 | 39 | 35.35 |
| 12 | 13.2 | 26.4 | 4.9 | 42 | 44.18 |
| 13 | 14.2 | 28.4 | 5.4 | 46 | 59.86 |
| 14 | 15.3 | 30.6 | 5.8 | 49 | 73.5 |
| 16 | 17.5 | 35.0 | 6.7 | 56 | 111 |
| 18 | 19.6 | 39.2 | 7.6 | 63 | 156 |
| 20 | 21.7 | 43.4 | 8.4 | 70 | 217 |
| 22 | 24.3 | 48.6 | 9.2 | 77 | 292 |
| 24 | 26.4 | 52.8 | 10.0 | 84 | 376 |
| 26 | 28.5 | 57.0 | 10.9 | 91 | 481 |

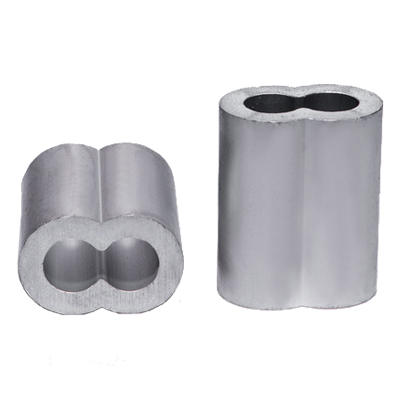

Product parameter
| Aluminum Hourglass Sleeves | ||||||
| Size(in) | A(in) | B(in) | C(in) | D(in) | L(in) | Weight (kgs/1000pcs) |
| 3/64 | 1/16 | 1/8 | 9/64 | 13/64 | 3/8 | 0.276 |
| 1/16 | 5/64 | 5/32 | 11/64 | 1/4 | 3/8 | 0.433 |
| 5/64 | 3/32 | 3/16 | 13/64 | 5/16 | 3/8 | 0.645 |
| 3/32 | 1/8 | 1/4 | 9/32 | 13/32 | 1/2 | 1.45 |
| 1/8 | 5/32 | 5/16 | 11/32 | 1/2 | 5/8 | 2.70 |
| 5/32 | 3/16 | 3/8 | 3/8 | 9/16 | 11/16 | 3.67 |
| 3/16 | 7/32 | 7/16 | 7/16 | 21/32 | 1 | 7.18 |
| 7/32 | 1/4 | 1/2 | 1/2 | 3/4 | 1-1/16 | 10.00 |
| 1/4 | 9/32 | 9/16 | 17/32 | 13/16 | 1-1/8 | 11.76 |
| 9/32 | 5/16 | 5/8 | 9/16 | 7/8 | 1-3/16 | 13.62 |
| 5/16 | 3/8 | 23/32 | 11/16 | 1-1/32 | 1-1/4 | 20.94 |
| 3/8 | 7/16 | 27/32 | 3/4 | 1-5/32 | 1-7/16 | 28.18 |
| 7/16 | 1/2 | 1 | 15/16 | 1-7/16 | 1-11/16 | 52.00 |
| 1/2 | 9/16 | 1-1/8 | 1-1/16 | 1-5/8 | 2 | 80.15 |
| 9/16 | 5/8 | 1-1/4 | 1-1/8 | 1-3/4 | 2-1/8 | 99.88 |
| 5/8 | 11/16 | 1-3/8 | 1-1/4 | 1-15/16 | 2-1/2 | 139.78 |
Categories

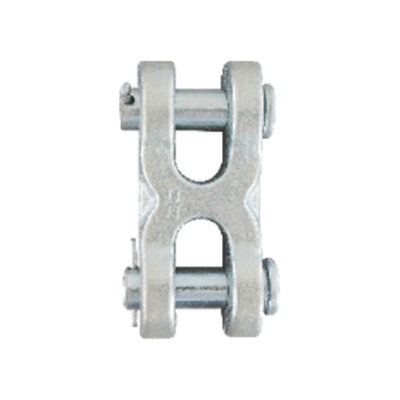

Twin Clevis Link S-249
Product parameter
| Twin Clevis Link S-249 | ||
| Size(in) | WLL(lbs) | Weight(kg) |
| 1/4-5/16 | 4650 | 0.21 |
| 3/8 | 6700 | 0.348 |
| 1/2-7/16 | 11300 | 0.726 |
| 5/8 | 17000 | 1.05 |

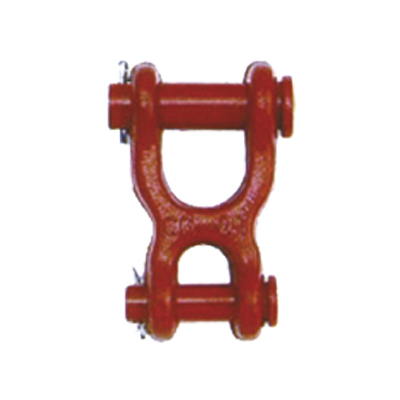

Product parameter
| Double Clevis Link S-247 | ||
| Size(in) | WLL(lbs) | Weight(kg) |
| 1/4 | 2600 | 0.17 |
| 5/16-3/8 | 5400 | 0.37 |
| 7/16 | 7000 | 0.57 |
| 1/2 | 9200 | 0.71 |
| 5/8 | 17500 | 1.3 |
Categories

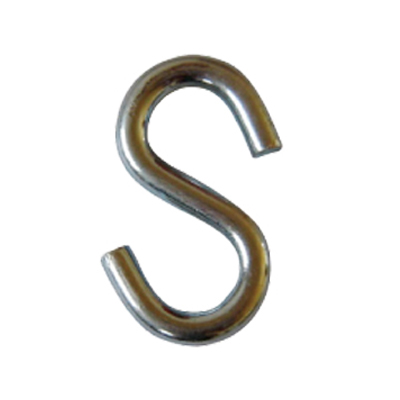

“S” High Hook ZP
Product parameter
| “S” high hook, ZP | |
| Size (mm) | N.W. (kg/pc) |
| 3 | 0.003 |
| 4 | 0.009 |
| 5 | 0.011 |
| 6 | 0.047 |
| 7 | 0.060 |
| 8 | 0.068 |
| 10 | 0.126 |
| 12 | 0.150 |
Categories
Repair & Lap Links
Product parameter
| Repair & Lap Links | |||
| Size (in) | Weight (kg/100pcs) | W.L.L | |
| IN LBS | IN KGS | ||
| 1/8×3/4 | 1-1/8 | 190 | 86 |
| 3/16×1 | 3-1/4 | 240 | 109 |
| 7/32×1-1/4 | 4-3/4 | 250 | 113 |
| 1/4×1-1/4 | 6-3/4 | 400 | 181 |
| 9/32×1-1/2 | 8-1/4 | 525 | 238 |
| 1/4×1-1/2 | 7-1/4 | 400 | 181 |
| 1/4×2 | 9-3/4 | 400 | 181 |
| 5/16×1-1/2 | 13 | 950 | 431 |
| 5/16×2 | 17 | 1000 | 454 |
| 3/8×1-5/8 | 23 | 1250 | 567 |
| 3/8×2 | 26 | 1250 | 567 |
| 1/2×2-1/2 | 53 | 2125 | 964 |
| 5/8×2-1/2 | 81 | 1000 | 454 |
Categories

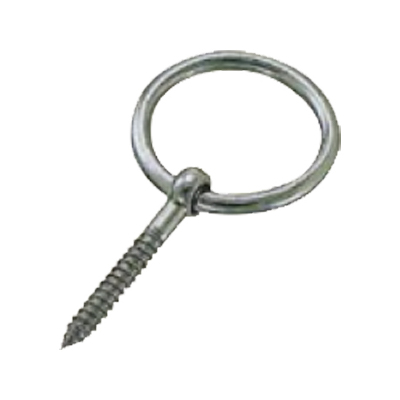

Round Ring with Screw
Product parameter
| Round Ring W/Screw | |||||
| D(mm) | L(mm) | H(mm) | d(mm) | A(mm) | B(mm) |
| 3 | 25 | 45 | 4 | 9 | 4 |
| 5 | 30 | 55 | 6 | 12 | 6 |
| 7 | 50 | 56 | 8 | 17 | 9 |

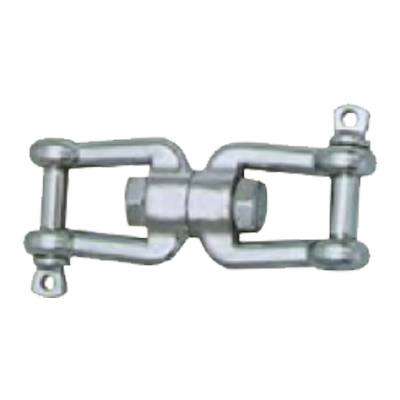

Product parameter
| European Swivel Jaw and Jaw | ||
| Size (mm) | D(mm) | L(mm) |
| 5 | 5 | 59 |
| 6 | 6 | 66 |
| 8 | 8 | 94 |
| 10 | 10 | 118 |
| 13 | 13 | 152 |
| 16 | 16 | 188 |
| 19 | 19 | 229 |
Categories

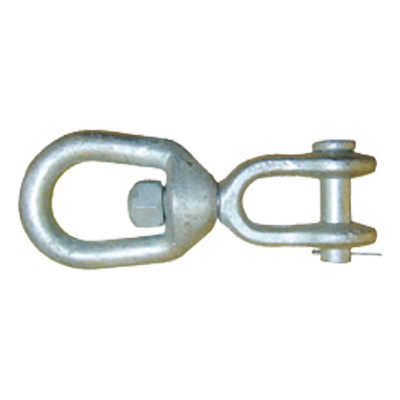

Swivel Jaw&Eye G403
Product parameter
| Swivel Jaw&Eye G403 | ||
| size(in) | WLL(lbs) | Weight(lbs) |
| 1/4 | 850 | 0.21 |
| 5/16 | 1250 | 0.34 |
| 3/8 | 2250 | 0.66 |
| 1/2 | 3600 | 1.34 |
| 5/8 | 5200 | 2.48 |
| 3/4 | 7200 | 3.88 |
| 7/8 | 10000 | 5.87 |
| 1 | 12500 | 9.84 |
| 1-1/4 | 18000 | 15.75 |
| 1-1/4 | 45200 | 54.75 |
