Load Binders Slings & Chains Series

Lever type Load Binder

Lever Type load binder

Product Details

Product parameter

Type Min-Max Chain Size
(in.)		 Working Load Limited
(lbs)		 Proof Load
(lbs)		 Minimum Ultimate Load
(lbs)		 Weight/Each
(lbs)		 Handle Length
(in.)		 Dimensions   (in.)
A B C D E E1 F F1 G
Lever type 1/4-5/16 2600 5200 7800 3.52 11.42 18.5 17.3 14.17 11.42 8.27 ~ 8.07 ~ 0.35
5/16-3/8 5400 10800 19000 8.37 15.43 25.2 23.2 19.49 15.55 11.22 ~ 11.22 ~ 0.51
3/8-1/2 9200 18400 28000 12.11 17.24 28.5 26.38 22.05 17.64 12.99 ~ 12.2 ~ 0.59
1/2-5/8 11000 22000 44000 19.7 21 33.86 30.12 25.78 20.87 14.37 ~ 14.37 ~ 0.74
Ratchet type 1/4-5/16 2600 5200 9200 3.52 7.16 7.16 0.89 1.77 ~ 16.22 21.26 17.79 22.83 0.35
5/16-3/8 5400 10800 19000 10.5 13.42 13.92 1.3 2.6 ~ 22.64 30.64 25.24 33.24 0.51
3/8-1/2 9200 18400 33000 12.9 13.92 13.92 1.3 2.6 ~ 24.13 32.13 27.04 35.04 0.59
1/2-5/8 13000 26000 46000 14.38 13.92 13.92 1.3 2.6 ~ 26.45 34.45 30.07 38.07 0.74
Categories
Load Binders Slings & Chains Series

Ratchet type Load Binder

Rated Type Load Binder

Product Details

Product parameter

Type Min-Max Chain Size
(in.)		 Working Load Limited
(lbs)		 Proof Load
(lbs)		 Minimum Ultimate Load
(lbs)		 Weight/Each
(lbs)		 Handle Length
(in.)		 Dimensions   (in.)
A B C D E E1 F F1 G
Lever type 1/4-5/16 2600 5200 7800 3.52 11.42 18.5 17.3 14.17 11.42 8.27 ~ 8.07 ~ 0.35
5/16-3/8 5400 10800 19000 8.37 15.43 25.2 23.2 19.49 15.55 11.22 ~ 11.22 ~ 0.51
3/8-1/2 9200 18400 28000 12.11 17.24 28.5 26.38 22.05 17.64 12.99 ~ 12.2 ~ 0.59
1/2-5/8 11000 22000 44000 19.7 21 33.86 30.12 25.78 20.87 14.37 ~ 14.37 ~ 0.74
Ratchet type 1/4-5/16 2600 5200 9200 3.52 7.16 7.16 0.89 1.77 ~ 16.22 21.26 17.79 22.83 0.35
5/16-3/8 5400 10800 19000 10.5 13.42 13.92 1.3 2.6 ~ 22.64 30.64 25.24 33.24 0.51
3/8-1/2 9200 18400 33000 12.9 13.92 13.92 1.3 2.6 ~ 24.13 32.13 27.04 35.04 0.59
1/2-5/8 13000 26000 46000 14.38 13.92 13.92 1.3 2.6 ~ 26.45 34.45 30.07 38.07 0.74
Categories
Slings & Chains Series Wire Rope Clips

Wire Rope Clip Simplex/Duplex

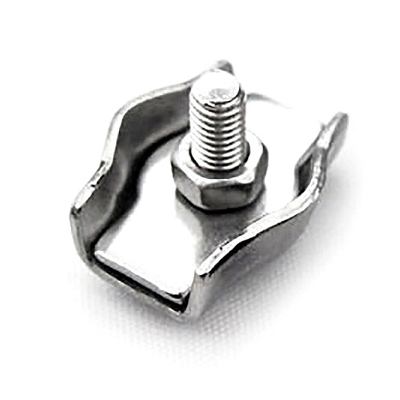

Wire Rope Clip Single/Double

Product Details

Product parameter

Single Wire Rope Clips
SizeΦ A B C D E Bolt Weight Each
mm mm mm mm mm mm mm kg
2 15 12 7 1 5 M4×13 0.004
3 17 15 9 1 6 M4×13 0.006
4 20 19 12 1.5 6 M5×17 0.01
5 25 20 14 1.5 8 M5×17 0.013
6 30 25 17 2 9.5 M6×22 0.027
8 38 31 23 2 10 M8×29 0.046
10 48 38 27 2.5 14 M10×31 0.09



Duplex Wire Rope Clips
SizeΦ A B C D E F Bolt Weight Each
mm mm mm mm mm mm mm mm kg
2 30 12 7 1 5 15 M4×13 0.008
3 34 15 9 1 6 16 M4×13 0.011
4 40 19 12 1.5 6 20 M5×17 0.021
5 50 20 14 1.5 8 25 M5×17 0.026
6 60 25 17 2 9.5 30 M6×22 0.052
8 75 31 23 2 10 38 M8×29 0.091
10 96 38 27 2.5 14 48 M10×31 0.18
Categories
Slings & Chains Series Wire Rope Clips

U.S. Type Drop Forged Fist Grip Clips

U.S. Type Drop Forged Fist Grip Clips

Product Details

Product parameter

U.S. Type Drop Forged Fist Grip Clips
Rope Size
(in)		 A B C D E
3/16″-1/4″ 6.35 31.75 37.3 9.65 32.5
5/16” 7.78 34.04 39.69 9.65 37.34
3/8” 9.65 40.39 47.63 11.18 45.97
7/16” 12.7 47.75 55.56 12.7 55.6
1/2” 12.7 47.75 55.56 12.7 55.6
9/16” 16 57.9 66.68 16 68.33
5/8′ 16 57.9 66.68 16 68.33
3/4” 19.05 68.33 77.79 19.05 74.68
7/8” 22.35 75.44 79.38 19.05 84.07
1″ 25.4 78.23 89.69 19.05 94.5
1-1/8” 28.7 87.38 99.22 22.35 106.17
1-1/4” 31.75 90.42 102.3 22.35 107.95
1-3/8” 38.1 104.9 118.27 25.4 141.22
1-1/2” 38.1 104.9 118.27 25.4 141.22
Categories
Slings & Chains Series Wire Rope Clips

U.S. Type Drop Forged Wire Rope Clips

U.S. Type Drop Forged

Product Details

Product parameter

U.S. Type Drop Forged Wire Rope Clips
Drop Forged
Rope Size
(in)		 Weight Each
(kg/pc)
1/8 0.027
3/16 0.045
1/4 0.091
5/16 0.136
3/8 0.213
7/16 0.345
1/2 0.363
9/16 0.472
5/8 0.481
3/4 0.680
7/8 0.960
1 1.180
1-1/8 1.32
1-1/4 1.95
1-3/8 2.09
1-1/2 2.45
1-5/8 3.18
1-3/4 4.20
2 5.90
2-1/4 7.26
2-1/2 8.62
