Tag: Chain Pulleys

Categories
Stackers Warehouse Equipments Series

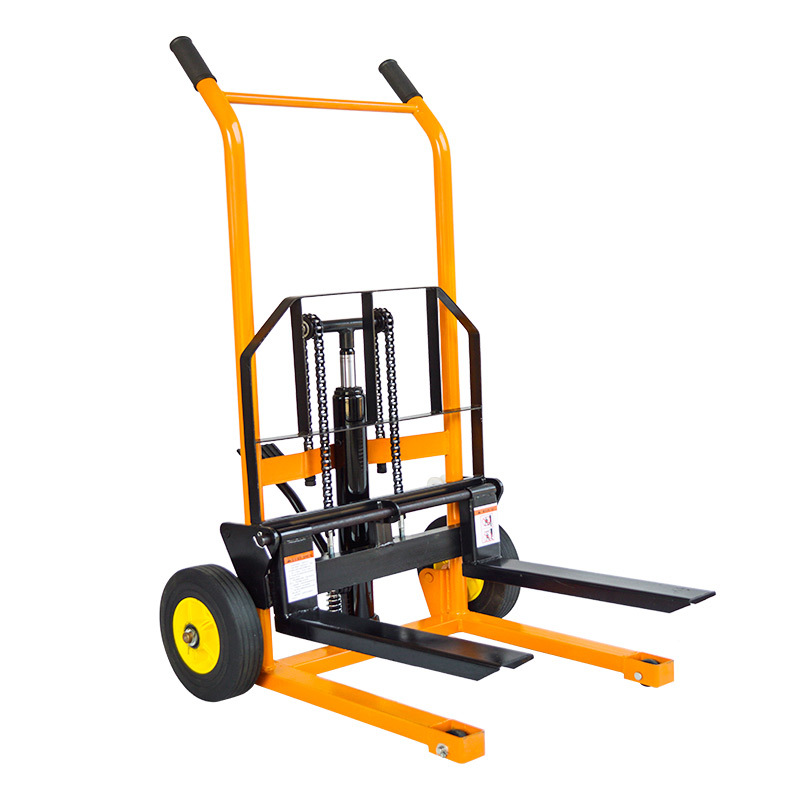

Mini Hand Stacker

Product Details

Product Parameter

Model M100 M200 E100A E150A E200 E250 E300
Drive Type / Manual Manual Electric Electric Electric Electric Electric
Capacity kg 100 200 100 150 200 250 300
Load Center mm 250 250 250 250 200 200 200
Min. Platform Height mm 130 130 130 130 1500/1800 1500/1800 1500/1800
Max. Platform Height mm 1500 1500 1700 1500 130 130 130
Platform Size (LxW) mm 600×470 600×470 600×470 600×470 470×600 480×610 470×600
Front Wheel(PU) mm Φ75×30 Φ75×30 Φ75×30 Φ75×30 Φ75 Φ75 Φ75
Rear Wheel(PU) mm Φ125×40 Φ125×40 Φ125×40 Φ125×40 Φ125 Φ125 Φ125
Motor Power kw – – 0.8 0.8 24/0.3 24/0.3 24/0.5
Battery Ah/V – – 12/24 12/24 24/20 24/20 24/20
Min. steering radius mm 850 850 900 900 – – –
Overall Size (LxWxH) mm 840x600x1830 870x600x1920 870x600x1990 870x600x1790 870x740x1920(2220) 870x740x1920(2220) 870x740x1920(2220)
Net Weight kg 50 60 66 63 85 90 105
Categories
Stackers Warehouse Equipments Series

Mini Semi Electric Stacker

Product Details

Product Parameter

Model M100 M200 E100A E150A E200 E250 E300
Drive Type / Manual Manual Electric Electric Electric Electric Electric
Capacity kg 100 200 100 150 200 250 300
Load Center mm 250 250 250 250 200 200 200
Min. Platform Height mm 130 130 130 130 1500/1800 1500/1800 1500/1800
Max. Platform Height mm 1500 1500 1700 1500 130 130 130
Platform Size (LxW) mm 600×470 600×470 600×470 600×470 470×600 480×610 470×600
Front Wheel(PU) mm Φ75×30 Φ75×30 Φ75×30 Φ75×30 Φ75 Φ75 Φ75
Rear Wheel(PU) mm Φ125×40 Φ125×40 Φ125×40 Φ125×40 Φ125 Φ125 Φ125
Motor Power kw – – 0.8 0.8 24/0.3 24/0.3 24/0.5
Battery Ah/V – – 12/24 12/24 24/20 24/20 24/20
Min. steering radius mm 850 850 900 900 – – –
Overall Size (LxWxH) mm 840x600x1830 870x600x1920 870x600x1990 870x600x1790 870x740x1920(2220) 870x740x1920(2220) 870x740x1920(2220)
Net Weight kg 50 60 66 63 85 90 105
Categories
Warehouse Equipments Series Work Platforms

Large Wheel Aluminum Alloy Manned Lifting Platform

Product Details

Product Parameter

Model Platform Size
(mm)		 Overall Dimension
(mm)		 Lift Rated Capacity
(kg)		 Overall Net Weight
(kg)		 Machine Power
(kw)		 Machine Height
(mm)
Single mast GTWY-W4-100 640*580 1500*900*1750 125 300 0.75 4000
Single mast GTWY-W5-100 640*580 1500*900*1750 125 300 0.75 5000
Single mast GTWY-W6-100 640*580 1500*900*1750 125 340 0.75 6000
Single mast GTWY-W8-100 640*580 1500*900*2080 125 370 0.75 8000
Single mast GTWY-W9-100 640*580 1550*900*2080 125 390 0.75 9000
Single mast GTWY-W10-100 640*580 1550*900*2080 125 420 0.75 10000
Double mast GTWY-W6-200S 1100*600 1600*900*1750 200 560 1.1 6000
Double mast GTWY-W8-200S 1160*600 1600*900*2080 200 560 1.1 8000
Double mast GTWY-W9-200S 1320*600 1800*900*2080 200 640 1.1 9000
Double mast GTWY-W10-200S 1320*600 1800*900*2140 200 640 1.1 10000
Double mast GTWY-W12-200S 1420*600 1930*970*2080 200 730 1.1 12000
Double mast GTWY-W14-200S 1420*600 1930*1100*2480 200 800 2.2 14000
Categories
Warehouse Equipments Series Work Platforms

Hand Operated Ladder Lifting Platform

Product Details

Product Parameter

Model GTWY-P25 GTWY-P33 GTWY-P46
Maximum  Platform Height mm 2500 3300 4600
Maximum Working Height mm 4200 5000 6300
Rated Load Of Platform kg 125 125 125
Size Of Working Platform(L*W ) mm 550*550 550*550 550*550
Full Length(L*W*H) mm 1150*750*1650 1250*750*1980 1450*750*1980
Outrigger Unfur(L* W) mm 1340*1340 1440*1330 2090*1790
Machine Weight kg 135 150 200
Up and down mode / Hand operated Hand operated Hand operated
Mode Of Movement / Manual promotion Manual promotion Manual promotion
