Tag: Chain Pulleys

Categories
Chain Hoists Hoists Series

Chain Hoist HSZ

Chain Hoist HSZ

Product Details

Product Feature

Product Parameter

Model Capacity
(t)		 StandardLift
(M)		 Running  testload
(t)		 Effort required
tolift max load
(N)		 No.of falls
of load chain		 load chain
diameter     (mm)		 Dimension(mm) Net weight
(kg)		 Packing(LW*H)(cm)
A B H D
HSZ-0.5 0.5 2.5 0.75 200 1 6 113 125 255 28 9 22*15*14
HSZ-1 1 2.5 1.5 304 1 6 126 147 306 32 11.5 25*19*15
HSZ-1.5 1.5 2.5 2.25 343 1 6 141 183 368 36 15 25*19*15
HSZ-2 2 3 3 304 2 6 141 183 368 36 16 31*21*17
HSZ-3 3 3 4.5 343 2 8 141 183 486 46 25 34.5*24*16
HSZ-5 5 3 7.5 414 2 10 163 215 616 46 39 40*30*17
HSZ-10 10 3 15 423 4 10 163 404 750 57 75 48*42*18.5
HSZ-20 20 3 30 435*2 8 10 191 595 1000 81 185 78*68*20
Categories
Chain Hoists Hoists Series

Chain Hoist HSZ-A

Chain Hoist-HSZ-A

Product Details

Product Feature

Product Parameter

Chain Hoist-HSZ-A-exploded diagram

Model Capacity(t) Standard lift(m) Running  test load(t) Effort required
to lift max load(N)		 No. of falls
of load chain		 load chain
diameter(mm)		 Dimension(mm) Net weight(kg) Packing(L*W*H)(cm)
A B D H
HSZ-0.5A 0.5 2.5 0.75 230 1 5×15 126 145 28 260 8.4 22*16*15
HSZ-1A 1 2.5 1.5 330 1 6.3×19 151 159 32 300 12 25*19*16
HSZ-1.5A 1.5 2.5 2.25 348 1 7.1×21 151 178 36 345 16.2 33*24*16
HSZ-2A 2 3 3 365 1 8×24 183 205 36 380 20 33*24*19
HSZ-3A 3 3 4.5 360 2 7.1×21 151 208 46 435 24 34.5*24*16
HSZ-5A 5 3 7.5 410 2 9×27 183 264 46 575 41 40*30*19
HSZ-7.5A 7.5 3 11.25 410 3 9×27 185 355 57 700 65 48*42*18.5
HSZ-10A 10 3 15 435 4 9×27 188 398 57 720 79 48*42*18.5
HSZ-15A 15 3 22.5 435 6 9×27 190 580 75 870 120 69*56*20
HSZ-20A 20 3 30 435×2 8 9×27 192 630 82 890 193 78*68*20
HSZ-30A 30 3 45 435×2 12 9×27 330 670 106 1000 220 85*67*30
HSZ-50A 50 3 75 435×2 22 9×27 410 900 130 1950 1092 110*100*130
Categories
Chain Hoists Hoists Series

Chain Hoist HSZ-B

Chain Hoist-HSZ-B

Product Details

Product Parameter

Model Capacity (t) Standard lift(m) Effort required
to lift max load(N)		 No.of falls of
load chain		 Load chain
dia.(mm)		 Net
weight(kg)		 Extra weight per meter of extra lift(kg)
HSZ-0.5B 0.5 2.5 170 1 6 7 1.7
HSZ-1B 1 2.5 340 1 6 9 1.7
HSZ-1.5B 1.5 2.5 390 1 8 14.5 2.3
HSZ-2B 2 2.5 340 2 6 14 2.5
HSZ-3B 3 3 390 2 8 22 3.7
HSZ-5B 5 3 420 2 10 36 5.3
HSZ-10B 10 3 420 4 10 68 9.7
HSZ-20B 20 3 420*2 8 10 150 19.4
Categories
Chain Hoists Hoists Series

Chain Hoist HSZ-K

Chain Hoist-HSZ-K

Product Details

Product Feature

Product Parameter

Chain Hoist-HSZ-K-exploded diagram

Model Capacity (t) Standard lift(m) Running text(T) Effort required
to lift max load(N)		 No.of falls of
load chain		 Load chain
diameter(mm)		 Dimension(mm) Net
weight(kg)		 Packing
(L×WxH)(cm)
A B C H
HSZ-K 0.5 2.5 0.75 240 1 5 132 148 28 345 11 24*18*18
1 2.5 1.5 250 1 6 151 172 32 376 12.5 28*21*21
1.5 2.5 2.25 265 1 7.1 173 196 36 442 17.8 34*26*20
2 3 3 335 1 8 175 210 36 470 19.5 34*26*20
3 3 4.5 363 1 10 176 230 46 565 29 34*26*20
5 3 7.5 360 2 9 189 280 46 688 41.3 41*32*24
10 3 15 380 4 9 189 463 57 765 78.5 48*42*18.5
Categories
Chain Hoists Hoists Series

Chain Hoist HSZ-V

Chain Hoist-HSZ-V

Product Details

Product Feature

Product Parameter

Chain Hoist-HSZ-A-exploded diagram

Model Capacity
(t)		 Standard lift
(m)		 Running
testload
(t)		 Effort required
to lift max load
(N)		 No.of falls of load chain load chain diameter (mm) Dimension(mm) Net weight (kg) Packing(L*W*H)(cm)
H A B D
HSZ-0.5V 0.5 2.5 0.75 230 1 5×15 260 126 145 28 8.4 22*16*15
HSZ-1V 1 2.5 1.5 330 1 6.3×19 300 151 159 32 12 25*19*16
HSZ-1.5V 1.5 2.5 2.25 348 1 7.1×21 345 151 178 36 16.2 33*24*16
HSZ-2V 2 3 3 365 1 8×24 380 183 205 36 20 33*24*19
HSZ-3V 3 3 4.5 360 2 7.1×21 435 151 208 46 24 34.5*24*16
HSZ-5V 5 3 7.5 410 2 9×27 575 183 264 46 41 40*30*19
HSZ-10V 10 3 15 435 4 9×27 720 188 398 57 79 48*42*18.5
HSZ-15V 15 3 22.5 435 6 9×27 870 190 580 75 120 69*56*20
HSZ-20V 20 3 30 435×2 8 9×27 890 192 630 82 193 78*68*20
HSZ-30V 30 3 45 435×2 12 9×27 1000 330 670 106 220 85*67*30
HSZ-50V 50 3 75 435×2 22 9×27 1950 410 900 130 1092 110*100*130

0.5T-20T with load limiter is available.
lift chain can be 6 mm,8mm,10mm also.

Categories
Chain Hoists Hoists Series

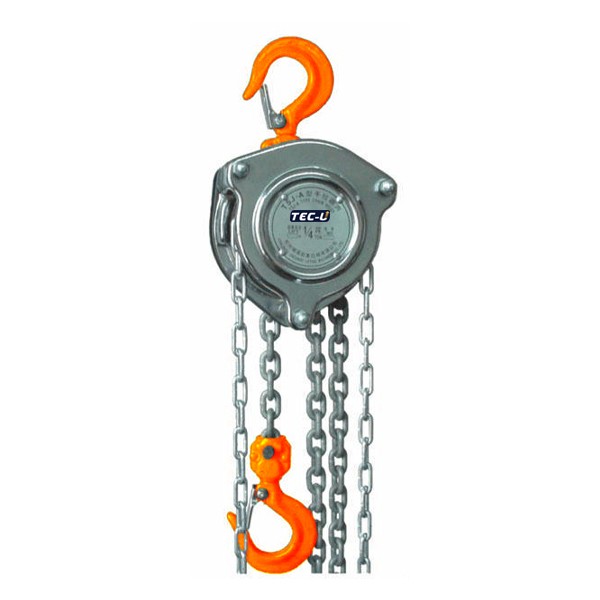

Chain Hoist HSZ-M2

Chain Hoist HSZ-M2

Product Details

Product Parameter

Capacity T 0.25
Lift M 2
Test Load KN 3.06
Headroom(hook to hook)Hmin MM 230
Pulling force to lift full load N 114
No.of load chain fall lines 1
Load chain (dia.* pitch) MM Φ4×12
Dimensions
(MM)		 A 100
B 110
C 48.5
D 109
E 18
E1 15.5
Φ 25
Net weight KG 3.5
Extra weight per meter of extra lift KG 0.54
Categories
Stackers Warehouse Equipments Series

Mini Semi Electric Stacker

Product Details

Product Parameter

Model M100 M200 E100A E150A E200 E250 E300
Drive Type / Manual Manual Electric Electric Electric Electric Electric
Capacity kg 100 200 100 150 200 250 300
Load Center mm 250 250 250 250 200 200 200
Min. Platform Height mm 130 130 130 130 1500/1800 1500/1800 1500/1800
Max. Platform Height mm 1500 1500 1700 1500 130 130 130
Platform Size (LxW) mm 600×470 600×470 600×470 600×470 470×600 480×610 470×600
Front Wheel(PU) mm Φ75×30 Φ75×30 Φ75×30 Φ75×30 Φ75 Φ75 Φ75
Rear Wheel(PU) mm Φ125×40 Φ125×40 Φ125×40 Φ125×40 Φ125 Φ125 Φ125
Motor Power kw – – 0.8 0.8 24/0.3 24/0.3 24/0.5
Battery Ah/V – – 12/24 12/24 24/20 24/20 24/20
Min. steering radius mm 850 850 900 900 – – –
Overall Size (LxWxH) mm 840x600x1830 870x600x1920 870x600x1990 870x600x1790 870x740x1920(2220) 870x740x1920(2220) 870x740x1920(2220)
Net Weight kg 50 60 66 63 85 90 105
Categories
Warehouse Equipments Series Work Platforms

Large Wheel Aluminum Alloy Manned Lifting Platform

Product Details

Product Parameter

Model Platform Size
(mm)		 Overall Dimension
(mm)		 Lift Rated Capacity
(kg)		 Overall Net Weight
(kg)		 Machine Power
(kw)		 Machine Height
(mm)
Single mast GTWY-W4-100 640*580 1500*900*1750 125 300 0.75 4000
Single mast GTWY-W5-100 640*580 1500*900*1750 125 300 0.75 5000
Single mast GTWY-W6-100 640*580 1500*900*1750 125 340 0.75 6000
Single mast GTWY-W8-100 640*580 1500*900*2080 125 370 0.75 8000
Single mast GTWY-W9-100 640*580 1550*900*2080 125 390 0.75 9000
Single mast GTWY-W10-100 640*580 1550*900*2080 125 420 0.75 10000
Double mast GTWY-W6-200S 1100*600 1600*900*1750 200 560 1.1 6000
Double mast GTWY-W8-200S 1160*600 1600*900*2080 200 560 1.1 8000
Double mast GTWY-W9-200S 1320*600 1800*900*2080 200 640 1.1 9000
Double mast GTWY-W10-200S 1320*600 1800*900*2140 200 640 1.1 10000
Double mast GTWY-W12-200S 1420*600 1930*970*2080 200 730 1.1 12000
Double mast GTWY-W14-200S 1420*600 1930*1100*2480 200 800 2.2 14000
Categories
Warehouse Equipments Series Work Platforms

Hand Operated Ladder Lifting Platform

Product Details

Product Parameter

Model GTWY-P25 GTWY-P33 GTWY-P46
Maximum  Platform Height mm 2500 3300 4600
Maximum Working Height mm 4200 5000 6300
Rated Load Of Platform kg 125 125 125
Size Of Working Platform(L*W ) mm 550*550 550*550 550*550
Full Length(L*W*H) mm 1150*750*1650 1250*750*1980 1450*750*1980
Outrigger Unfur(L* W) mm 1340*1340 1440*1330 2090*1790
Machine Weight kg 135 150 200
Up and down mode / Hand operated Hand operated Hand operated
Mode Of Movement / Manual promotion Manual promotion Manual promotion
Categories
Stackers Warehouse Equipments Series

Lightweight Stacker Truck

Product Details

Product Parameter

Model Load Lifting  height Dimensions Load  Center
kg lb Put the fork
up		 Put down  the
fork		 Long Wide Height
m in m in cm in cm in cm in cm in
STD-181 181 400 3.0 120 2.5 98 87.6 34-1/2 61 24 170 67 25.4 10
STD-227 227 500 1.8 70 1.2 47 87.6 34-1/2 61 24 170 67 25.4 10
BR-159 159 350 3.6 142 3.0 120 110 43 73.6 29 202.4 79~3/4 25.4 10
BR-181 181 400 3.0 120 2.5 98 110 43 73.6 29 170 67 25.4 10
BR-227 227 500 1.8 70 1.2 47 110 43 73.6 29 170 67 25.4 10
BC-159 159 350 3.6 142 3.0 120 117 46 73.6 29 202.4 79~3/4 25.4 10
BC-181 181 400 3.0 120 2.5 98 117 46 73.6 29 170 67 25.4 10
BC-227 227 500 1.8 70 1.2 47 117 46 73.6 29 170 67 25.4 10
