Stackers Warehouse Equipments Series

Semi Electric Stacker SDYG

Semi Electric Self-Lift Stacker SDYG-Z

Product Details

Product parameter

Model SDYG-1016/1020/1025/1030/1035 SDYG-1516/1520/1525/1530/1535 SDYG-2016/2020
Capacity Q(Kg) 1000 1500 2000
Load center C(mm) 450 450 450
Type of lifting Electric Electric Electric
perating type Walkie Walkie Walkie
Material Nylon Nylon Nylon
Quantity of Steering/Bearing Wheel 2/2 2/2 2/2
Wheel base mm 1182 1182 1182
Bearing wheel size mm Φ80×60 Φ80×60 Φ80×60
Steering wheel size mm Φ180×50 Φ180×50 Φ180×50
Min.fork height H1(mm) 90 90 90
Max.fork height H2(mm) 1600/2000/2500/3000/3500 1600/2000/2500/3000/3500 1600/2000
Fork outside width E(mm) 320-710 320-710 340-710
Fork inside width mm 20-410 20-410 20-390
Fork length L1(mm) 1150 1150 1150
Single fork size e/s(mm) 150/60 150/60 160/60
Overall length L(mm) 1810 1810 1810
Overall width B(mm) 770 770 770
Overall height H(mm) 2130/1580/1830/2080/2330 2180/1630/1880/2130/2380 2190/1630
Max.lifting height mm 1510/1910/2410/2910/3410 1510/1910/2410/2910/3410 1510/1910
Min.turning radius Wa(mm) 1450 1450 1450
Lifting speed(laden/unladen) mm/s 40-50/85-95 40-50/85-95 40-50/85-95
Lowering speed(laden/unladen) mm/s 90-110/85-95 90-110/85-95 90-110/85-95
Lift motor Kw 1.6 1.6 1.6
Battery capacity V/Ah 12V120 12V120 12V120
Battery weight Kg 36 36 36
Net weight Kg 340/390/410/430/450 360/410/430/450/470 430/470
Categories
Stackers Warehouse Equipments Series

Semi Electric Self-Lift Stacker SDYG-Z

Semi Electric Self-Lift Stacker SDYG-Z

Product Details

Product parameter

Model SDYG-Z 0509 SDYG-Z 0510 SDYG-Z 0511 SDYG-Z 0513
Capacity Q(Kg) 500 500 500 500
Load center C(mm) 400 400 400 400
Type of lifting Electric Electric Electric Electric
Operating type Walkie Walkie Walkie Walkie
Material Nylon/PU Nylon/PU Nylon/PU Nylon/PU
Wheel base y(mm) 860 860 860 860
Front wheel base b11(mm) 380 380 380 380
Back wheel base b10(mm) 670 670 670 670
Quantity of SteeringBearing/Balance Wheel 2002-2-6 2002-2-6 2002-2-6 2002-2-6
Bearing wheel size mm Φ70×60 Φ70×60 Φ70×60 Φ70×60
Steering wheel size mm Φ100×50 Φ100×50 Φ100×50 Φ100×50
Balance wheel size mm Φ40×26 Φ40×26 Φ40×26 Φ40×26
Training wheel size mm Φ30×26 Φ30×26 Φ30×26 Φ30×26
Min.fork height mm 90 90 90 90
Max.fork height h3(mm) 900 1000 1100 1300
Fork outside width mm 535 535 535 535
Fork inside width mm 225 225 225 225
Fork length l(mm) 1150 1150 1150 1150
Single fork size e/s(mm) 155/60 155/60 155/60 155/60
Overall length L1(mm) 1565 1565 1600 1600
Overall width b1(mm) 790 790 790 790
Overall height h1(mm) 1195 1250 1400 1600
Whole height(after tape file shelf) h4(mm) 2100 2300 2500 2900
Length of vertical surface to fork l2(mm) 1150 1150 1150 1150
Min.turning radius Wa(mm) 1120 1120 1100 1120
Lifting speed(ladenfunladen) mm/s 80/110 80/110 80/110 80/110
Lowering speed(laden/unladen) mm/s 80/80 80/80 80/80 80/80
Lift motor V/Kw 12/0.8 12/0.8 12V0.8 12V/0.8
Battery capacity V/Ah 12/33 12/33 12/33 12/33
Battery weight Kg 10 10 10 10
Net weight Kg 175 186 197 219
Categories
Stackers Warehouse Equipments Series

Electric Stacker CDD

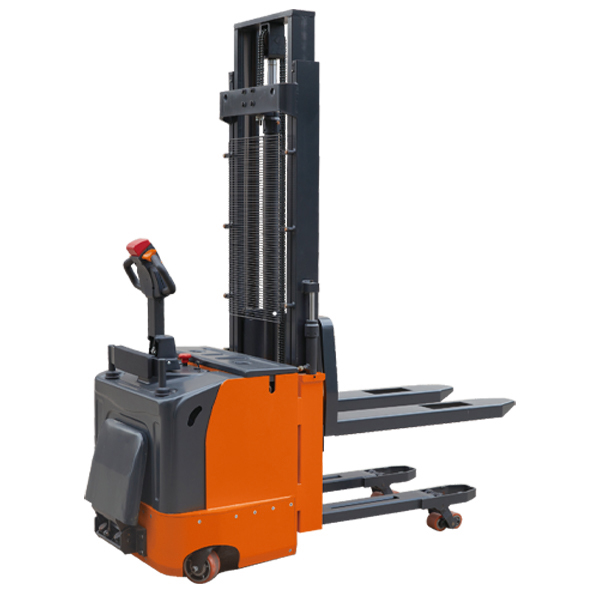

Double Decker Pallet Truck CDD

Product Details

Product parameter

Model CDD20
Config-code EZ15/EZ20
Drive Unit Electric
Operation type Standing
Load capacity kg 1500/2000
Load center C (mm) 600
Overall length (pedal off) L (mm) 2237
Overall width b (mm) 940
Overall height H2 (mm) 1825 2025 2125 2225 2325
Lift height H (mm) 2500 2900 3100 3300 3500
Max working height H1 (mm) 3144 3544 3744 3944 4144
Lowered fork height h  (mm) 90
Fork dimensions  L1×b2xm  (mm) 1150×160×56
Maximum fork width b1 (mm) 540/680
Turning radius  Wa  (mm) 1790
Drive motor power KW 1.6 AC
Lift motor power kw 2.0/3.0
Steering motor power KW 0.2
Battery Ah/V 200/24
Weight w/o battery kg 1070 1092 1105 1114 1127
Battery weight kg 235
Categories
Stackers Warehouse Equipments Series

Electric Stacker CDDYG-I

Electric Stacker CDDYG-I

Product Details

Product parameter



Model CDDYG-I 1525 CDDYG-I 1530 CDDYG-I 1535
Rated load Q(Kg) 1500 1500 1500
Load center distance C(mm) 500 500 500
Lifting method Electric Electric Electric
Operating method Walking/Standing Walking/Standing Walking/Standing
Material PU PU PU
Wheelbase Y(mm) 1320 1320 1320
Driving/steering/weight-bearing wheels Quantity mm 1×+2/4 1×+2/4 1×+2/4
Size of load-bearing wheels mm Φ80×70 Φ80×70 Φ80×70
Drive wheel size mm Φ230×75 Φ230×75 Φ230×75
Counterbalance wheel size mm Φ125×60 Φ125×60 Φ125×60
Minimum fork height from the ground H13(mm) 90 90 90
Maximum fork height after lifting mm 2500 3000 3500
Max. lifting stroke mm 2480 2980 3480
Outside fork width B2(mm) 685 685 685
Inside fork width B11(mm) 345 345 345
Fork working length L/E/S(mm) 1150/170/60 1150/170/60 1150/170/60
Overall vehicle length (with pedals retracted) L1(mm) 2030 2030 2030
Overall width B1(mm) 840 840 840
Overall height H1(mm) 1890 2140 2390
Min. turning radius Wa(mm) 1545 1545 1545
Aisle width, pallet1000*1200 mm 2280 2280 2280
Aisle width, pallet800*1200 mm 2330 2330 2330
Max. travel speed (full/no load) km/h 4/6 4/6 4/6
Max. lifting speed (full/no load) mm/s (90-110)/(150-170) (90-110)/(150-170) (90-110)/(150-170)
Max. descent speed (full/no load) mm/s (100-200)/(85-95) (100-200)/(85-95) (100-200)/(85-95)
Fast/slow speed adjustment function Yes Yes Yes
Electronic steering system Optional Optional Optional
Climbing speed (full/no load) % 4/6 4/6 4/6
Drive mode AC AC AC
Drive motor Kw 24V/1.5 24V/1.5 24V/1.5
Lifting motor Kw 24V/2.2 24V/2.2 24V/2.2
Battery capacity V/Ah 24V/170A 24V/170A 24V/170A
Charger type 24V30A 24V30A 24V30A
Battery weight Kg 155 155 155
Self-weight Kg 840 880 900
Categories
Stackers Warehouse Equipments Series

Electric Stacker CDDYG-II

Electric Stacker CDDYG-II

Product Details

Product parameter

Model CDDYG-II 1530/1535 CDDYG-II 1545
Rated load Q(Kg) 1500 1500
Load center distance C(mm) 600 600
Lifting method Electric Electric
Operating method Standing Standing
Material PU PU
Wheelbase mm 1380 1380
Driving/steering/weight-bearing wheels Quantity 1×+2/4 1×+2/4
Size of load-bearing wheels mm Φ80×70 Φ80×70
Drive wheel size mm Φ230×75 Φ230×75
Counterbalance wheel size mm Φ125×60 Φ125×60
Front overhang mm 670 670
Front and rear wheel spacing Y(mm) 1380 1380
Front wheel spacing b11(mm) 515 515
Rear wheel spacing b10(mm) 645 645
Free lift height mm – 1600
Minimum fork height from the ground h13(mm) 90 90
Maximum fork height after lifting h2(mm) 3000/3500 4500
Outside fork width mm 685 685
Inside fork width mm 345 345
Single side fork size l/e/s(mm) 1150×170×60 1150×170×60
Height of roof rack h(mm) – 2050
Overall vehicle length (with pedals retracted) L1(mm) 2110 2110
Overall width b1(mm) 880 880
Overall height h(mm) 2050/2300 2050
Overall vehicle height when forks are raised to maximum height h14(mm) 3500/4000 5050
Min. turning radius Wa(mm) 1635 1635
Aisle width, pallet1000*1200 mm 2350 2350
Aisle width, pallet800*1200 mm 2400 2400
Front and rear axle load (full/no load) Kg 420/900，1020/1800 420/900，1020/1800
Front and rear axle load (full/no load) km/h 5/6 5/6
Max. lifting speed (full/no load) mm/s 90-110/135-165 90-110/135-165
Max. descent speed (full/no load) mm/s 300/130 300/130
Electronic steering system Optional Optional
Climbing speed (full/no load) % 6/8 6/8
Drive mode AC drive AC drive
Steering motor Kw 0.2 0.2
Drive motor Kw 1.5 1.5
Lifting motor Kw 3 3
Charger type V/Ah 24/280 24/280
Electrical V/A 24/30 24/30
Battery weight Kg 250 25
Self-weight Kg 1120/1250 1360
Categories
Stackers Warehouse Equipments Series

Electric Stacker CDDYG-E

Electric Stacker CDDYG-E

Product Details

Product parameter

Model CDDYG-E 1016/1020/1025/1030 CDDYG-E 1516/1520/1525
Rated load Q(Kg) 1000 1500
Load center distance C(mm) 450 450
Lifting method Electric Electric
Operating method Walking Walking
Material PU PU
Driving/steering/weight-bearing wheels Quantity 1×+1/2 1×+1/4
Size of load-bearing wheels mm Φ80×60 Φ80×60
Drive wheel size mm Φ210×75 Φ210×75
Steering wheel size mm Φ180×50 Φ180×50
Front wheel spacing b11(mm) 560 560
Rear wheel spacing b10(mm) 760 760
Minimum fork height from the ground h13(mm) 90 90
Maximum fork height after lifting h3(mm) 1600/2000/2500/3000 1600/2000/2500
Outside fork width b3(mm) 320-740 320-740
Inside fork width b2(mm) 20-440 20-440
Single-sided fork dimensions l/e/s(mm) 1150×150×60 1150×150×60
Overall vehicle length l1(mm) 1920 1920
Overall width b1(mm) 945 945
Overall height h1(mm) 2140/1580/1830/2080 2180/1630/1880
Min. turning radius Wa(mm) 1480/1480/1480/1430 1430
Aisle width, pallet1000*1200 mm 2170 2170
Aisle width, pallet800*1200 mm 2220 2220
Max. travel speed (full/no load) km/h 3.5/4 3.5/4
Max. lifting speed (full/no load) mm/s 105/170 105/170
Max. descent speed (full/no load) mm/s 180/170 180/170
Climbing speed (full/no load) % 4/6 4/6
Drive motor V/Kw 24/0.75 24/0.75
Lifting motor V/Kw 24/2.2 24/2.2
Battery capacity V/Ah 2×12/80 2×12/80
Charger type V/A 24/12 24/12
Battery weight Kg 2×18.2±0.5 2×18.2±0.5
Self-weight Kg 360/420/425/455 390/425/460
